Headlight Assembly: Removal

WARNING: This page is about a different car, the 2023 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not perform work with wet hands, because there is a possibility of electrical shock.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL>BUMPER FACE .

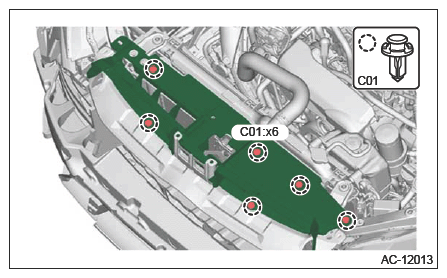

  3. Remove the bracket grille front.
    1. Remove the clips, and remove the bracket grille front.
    G16441283Courtesy of SUBARU OF AMERICA, INC.

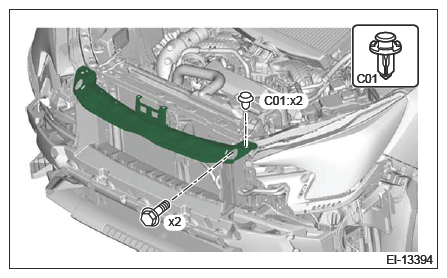

  4. Remove the energy absorber UPR.
    1. Remove the bolts and clips, and remove the energy absorber UPR.
    G16441284Courtesy of SUBARU OF AMERICA, INC.

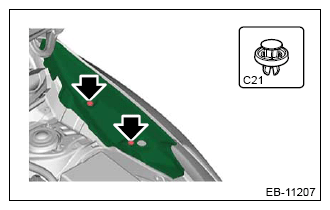

  5. Remove the cover fender UPR.
    1. Remove the clip, and remove the cover fender UPR.
    G16441285Courtesy of SUBARU OF AMERICA, INC.

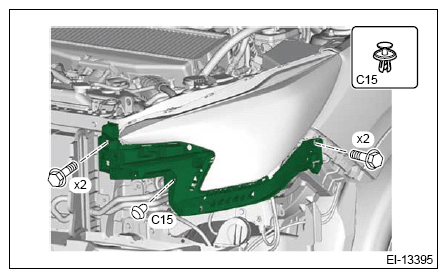

  6. Remove the bracket corner front.
    1. Remove the clip.
    2. Remove the bolts, and remove the bracket corner front.
    G16441286Courtesy of SUBARU OF AMERICA, INC.

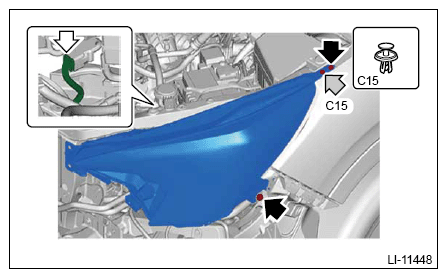

  7. Remove the light assembly head.
    CAUTION: Be careful not to damage the light assembly head and the fender COMPL front.
    1. Disconnect the connector.
    2. Remove the bolts and clips, and remove the light assembly head.
      G16441287Courtesy of SUBARU OF AMERICA, INC.
