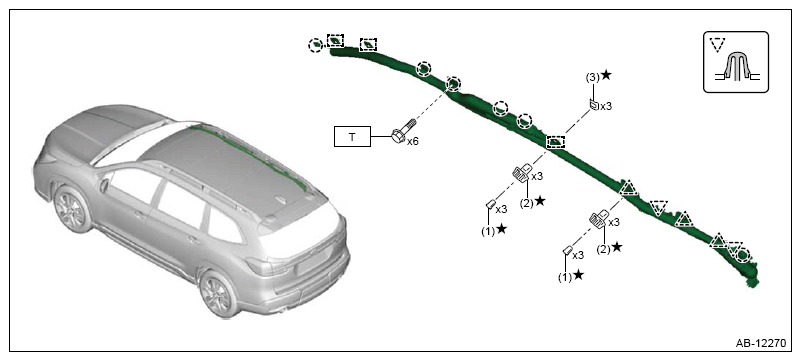

Curtain Airbag Module

WARNING: This page is about a different car, the 2023 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of SUBARU OF AMERICA, INC.

(1)	Clip pin
(2)	Clip bushing
(3)	Spacer

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
