CVTF Cooler (With Warmer Function): Assembly

1. Connect a new CVTF cooler hose. (Model without CVTF cooler (air cool))

NOTE:

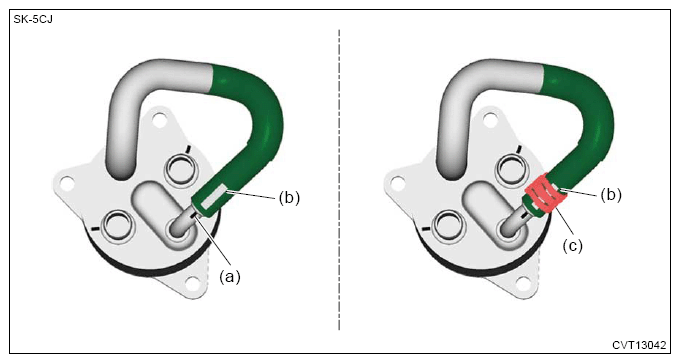

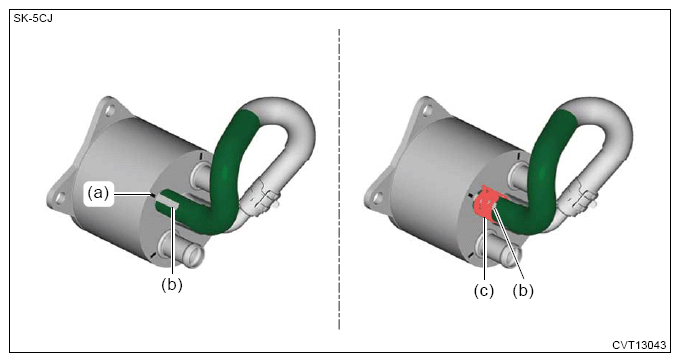

• Align the mark (a) of CVTF cooler (with warmer feature) with the mark (b) of CVTF cooler hose.
• Align the claw and the center of the claw of hose clamp (c) with the mark (b) of CVTF cooler hose.
• Set the hose clamp (c) so that the both ends of the mark (b) of CVTF cooler hose can be seen.
