Reverse Automatic Braking Control Module And Sonar Sensor

WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.

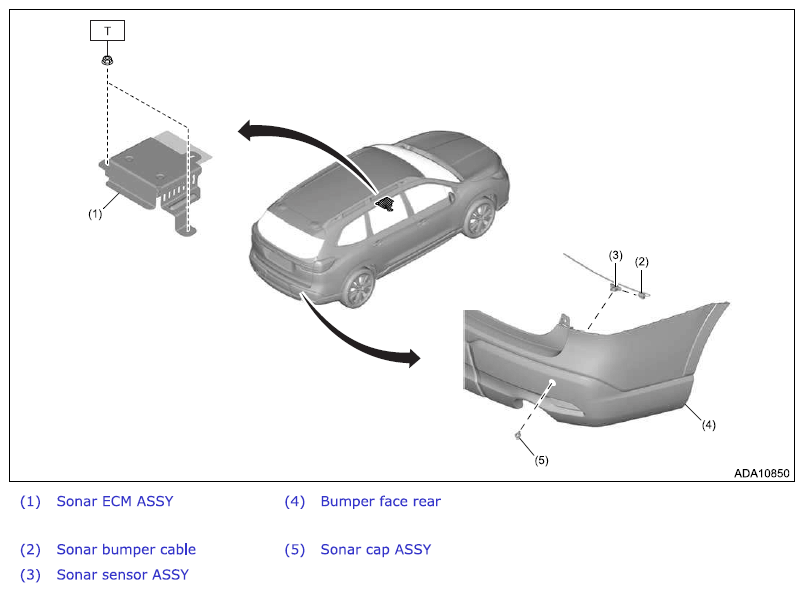

Fig 1: Reverse Automatic Braking Control Module And Sonar Sensor Components
G13865675Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
