Propeller Shaft

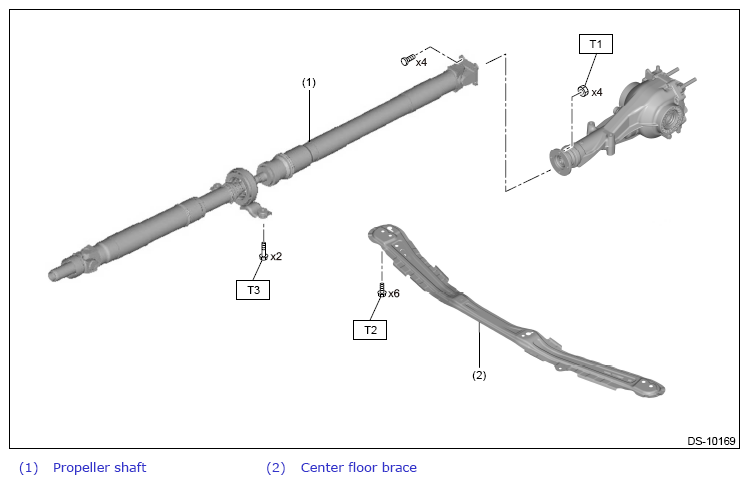

Fig 1: Propeller Shaft Components
G13863422Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 31 (3.2, 22.9)

T2: 45 (4.6, 33.2)

T3: 52 (5.3, 38.4)
