Home >> Subaru >> 2020 >> Outback Base >> Repair and Diagnosis >> Accessories & Equipment >> Headlights >> Lighting System >> Rear Combination Light Assembly >> Disassembly >> Turn Signal Light Bulb

Turn Signal Light Bulb

  1. Rotate in the direction of arrow shown in the figure to remove the bulb socket.
  2. Remove the turn signal light bulb.

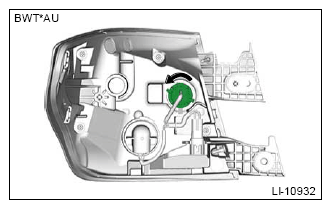

    • Sedan model
      G13622836Courtesy of SUBARU OF AMERICA, INC.

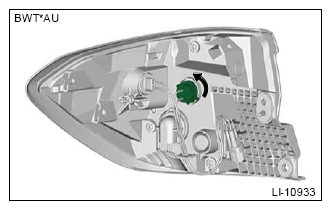

    • OUTBACK model
      G13622837Courtesy of SUBARU OF AMERICA, INC.
