Sedan Model

  1. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .

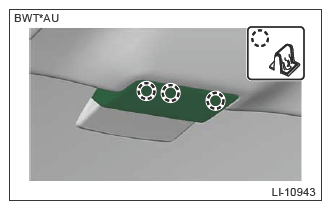

  2. Release the claws, then remove the cover high-mounted stop light.
    G13622852Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the light assembly high-mounted.
    CAUTION: When using a flat tip screwdriver, use an appropriate sized tool for the insertion opening, apply protective tape or cloth around the tool, and be careful not to cause damage.

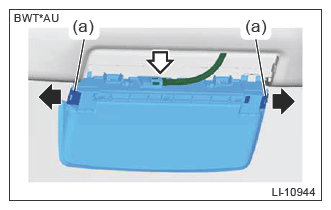

    1. Disconnect the connector.
    2. Pull the clip (a) in the direction of arrow.
      G13622853Courtesy of SUBARU OF AMERICA, INC.

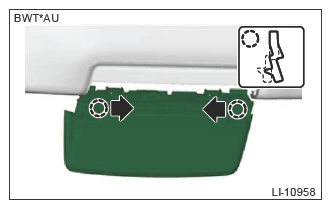

    3. Remove the light assembly high-mounted while pushing the claw in the arrow direction.
      G13622854Courtesy of SUBARU OF AMERICA, INC.
