Telematics System (Diagnostics)
>>
General Description
>>

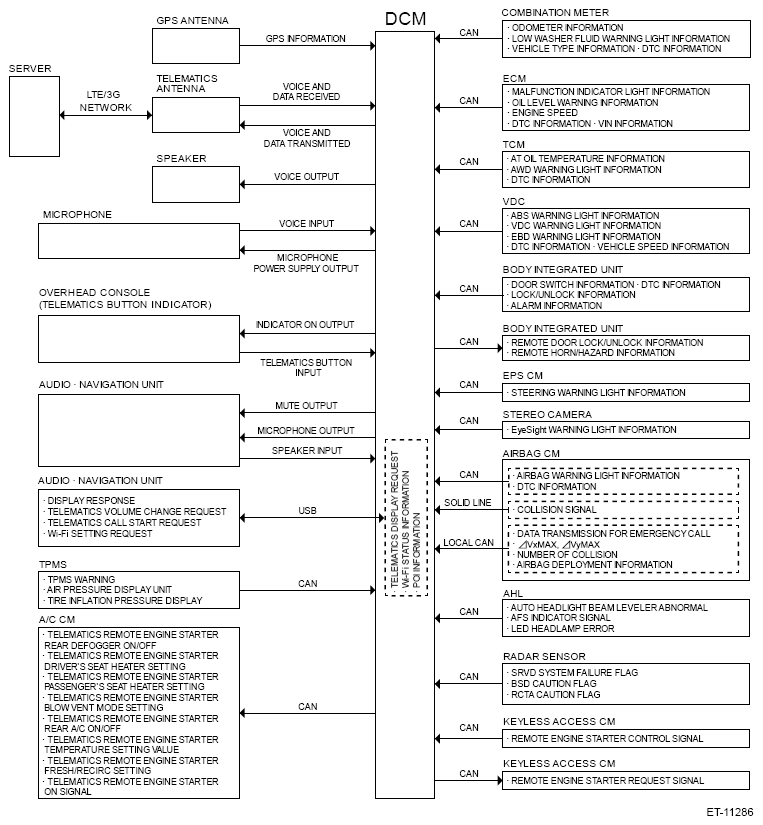

System Block Diagram
System Block Diagram
Main signals used between Data Communication Module and relevant Control Module
