Front Camber

  1. Adjust the camber angle to the following value.
    Model Camber (difference between RH and LH 45' or less)
    Impreza model -0°30'±0°45'
    Crosstrek model 0°00'±0°45'
  2. Loosen the two nuts while holding the strut bolts.
  3. Turn the camber adjusting bolt so that the camber is set at specification.
    NOTE: Moving the adjusting bolt by one scale changes the camber by approximately 0°10'.

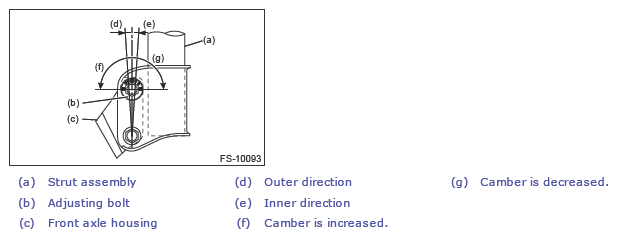

    G13231400Courtesy of SUBARU OF AMERICA, INC.
    To increase camber.
    Rotate the left side counterclockwise. Rotate the right side clockwise.
    G06654859Courtesy of SUBARU OF AMERICA, INC.
    G06654860Courtesy of SUBARU OF AMERICA, INC.
    To decrease camber.
    Rotate the left side clockwise. Rotate the right side counterclockwise.
    G06654860Courtesy of SUBARU OF AMERICA, INC.
    G06654859Courtesy of SUBARU OF AMERICA, INC.
  4. Tighten two new nuts.

    Tightening torque:

    155 N.m (15.8 kgf-m, 114.3 ft-lb)

    NOTE: While holding the adjusting bolt side, tighten the nut side.
