Manual Transaxle & Differential (TY75)
>>
General Description
>>
Components With Torque Specification
>>
Shift Link Assembly
Shift Link Assembly

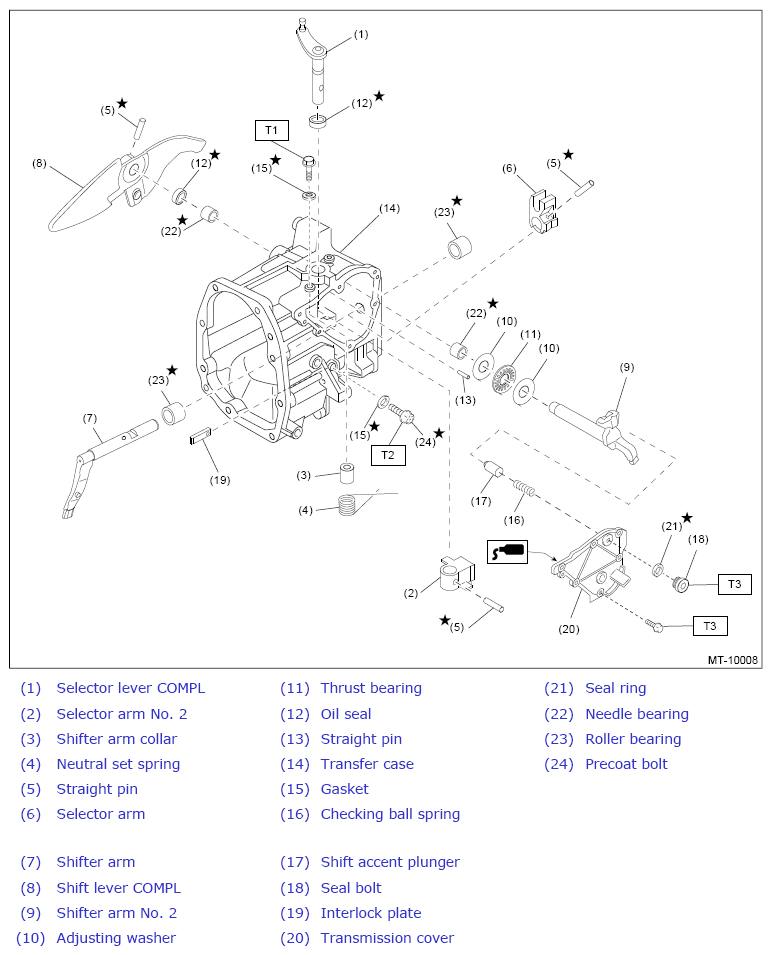

Fig 1: Exploded View Of Shift Link Assembly Components
Courtesy of SUBARU OF AMERICA, INC.
Tightening Torque: N.m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 20 (2.0, 14.8)
T3: 25 (2.5, 18.4)
Courtesy of SUBARU OF AMERICA, INC.
