Main Shaft Assembly

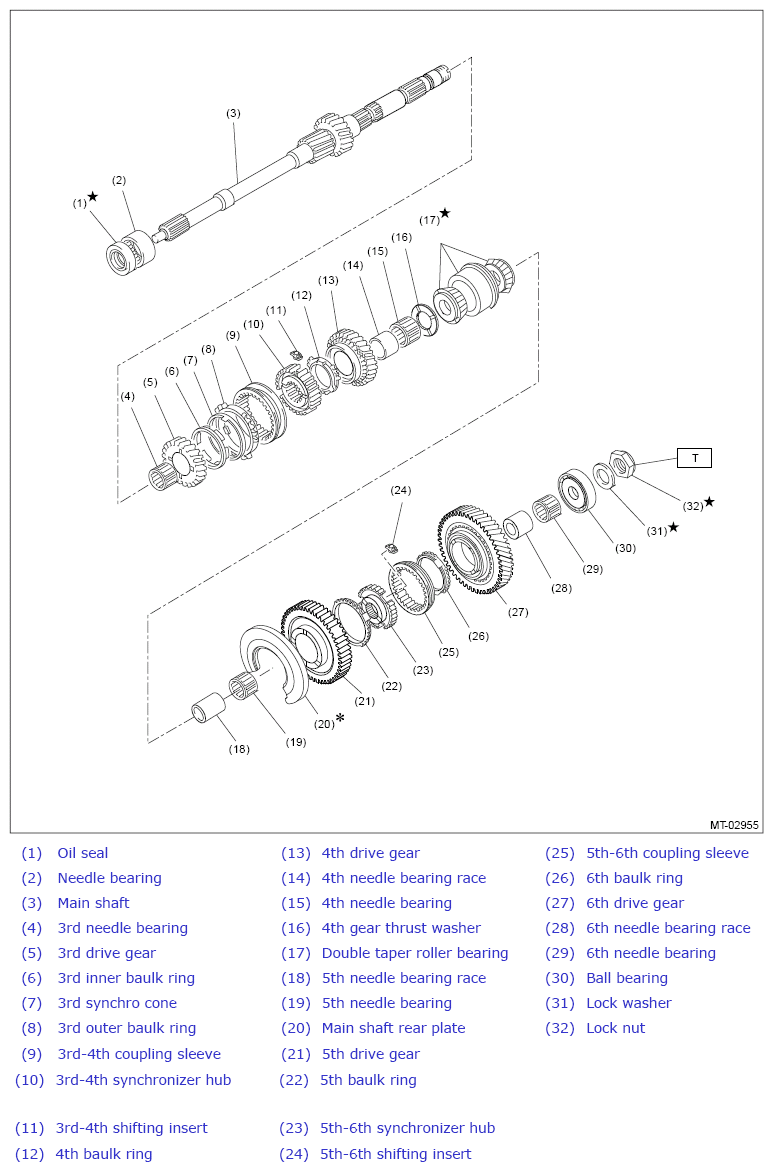

Fig 1: Exploded View Of Main Shaft Assembly Components
G12394690Courtesy of SUBARU OF AMERICA, INC.

Tightening Torque: N.m (kgf-m, ft-lb)

T: 160 (16.3, 118.0)
