Manual Transaxle & Differential (TY75)
>>
General Description
>>
Components With Torque Specification
>>
Front Differential
Front Differential

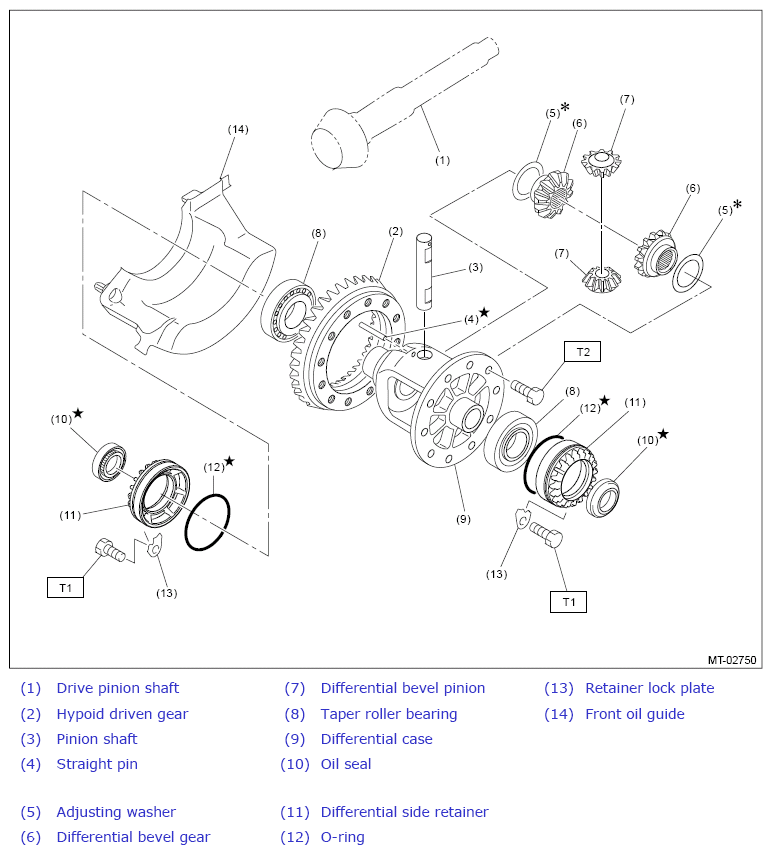

Fig 1: Exploded View Of Front Differential Components
Courtesy of SUBARU OF AMERICA, INC.
Tightening Torque: N.m (kgf-m, ft-lb)
T1: 25 (2.5, 18.4)
T2: 62 (6.3, 45.7)
Courtesy of SUBARU OF AMERICA, INC.
