Vehicle Dynamics Control (VDC) System (Diagnostics): Electrical Component Location: Location

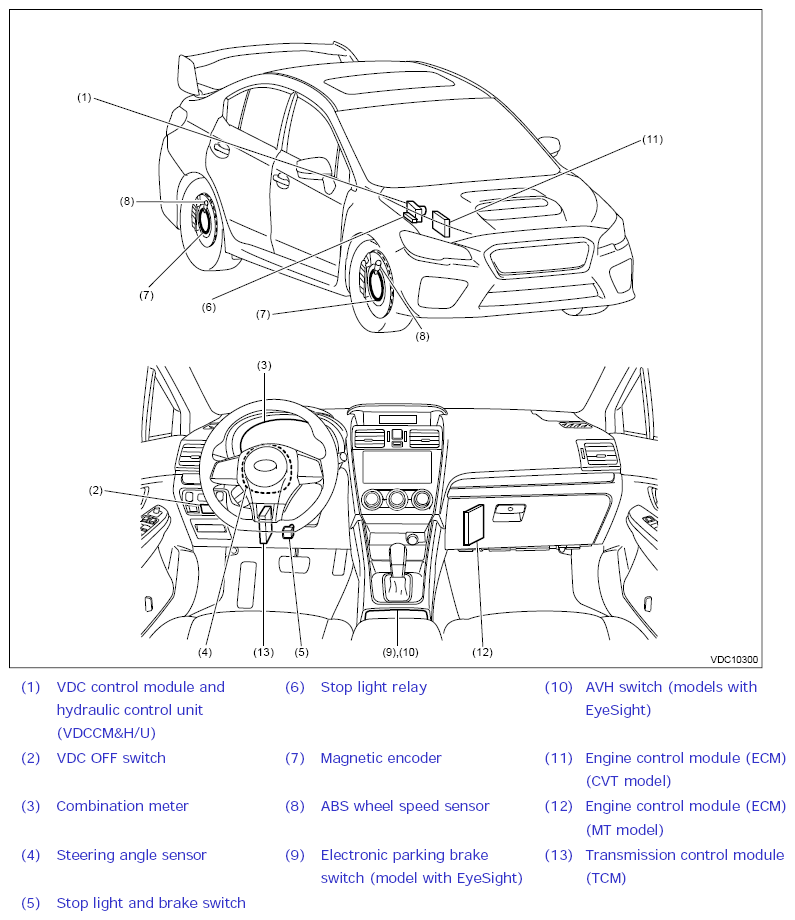

G12454135Courtesy of SUBARU OF AMERICA, INC.

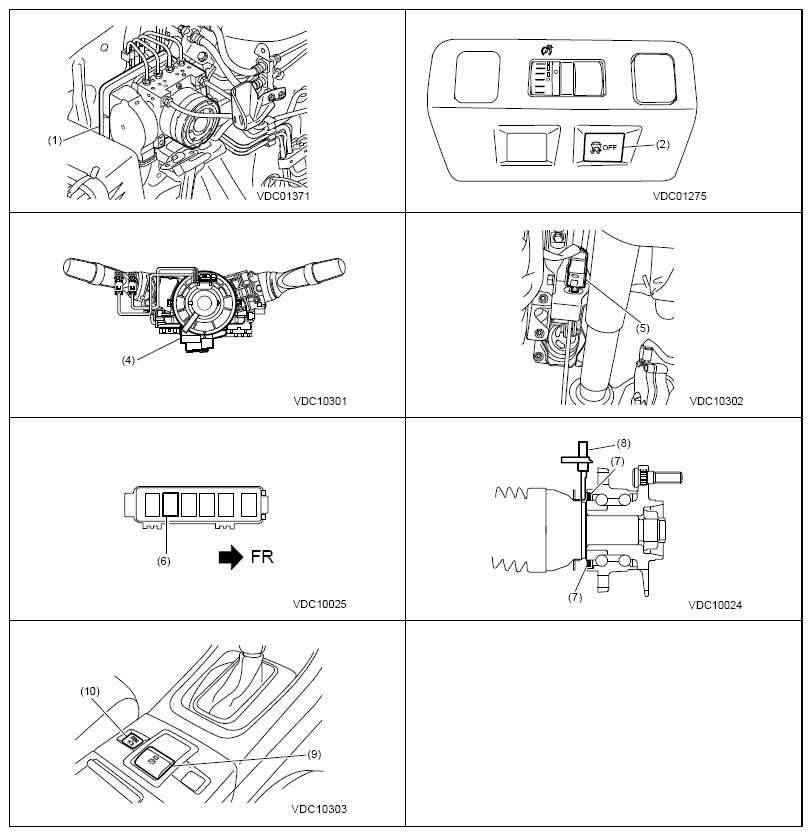

G12454136Courtesy of SUBARU OF AMERICA, INC.

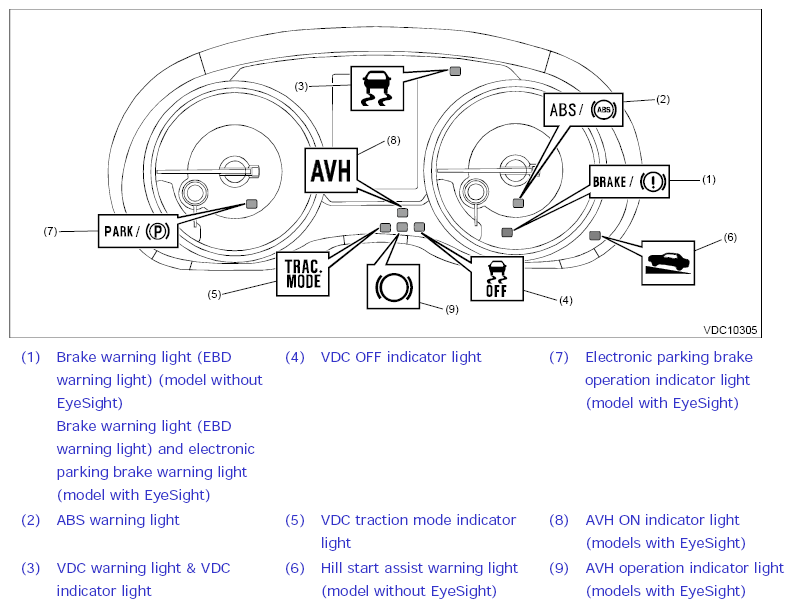

Combination meter

G12454137Courtesy of SUBARU OF AMERICA, INC.
