Washer Tank

Models without Eye-Sight

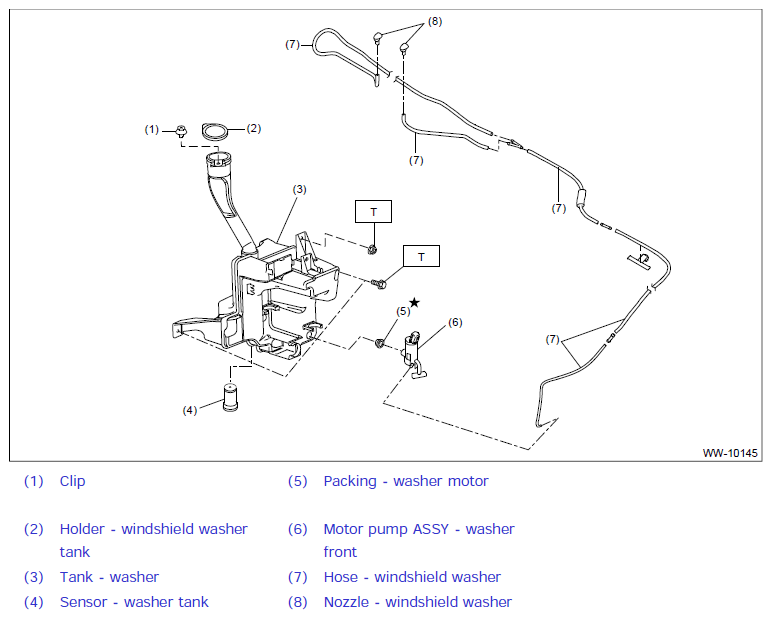

Fig 1: Exploded View Of Washer Tank Components (Models Without Eye-Sight)
Courtesy of SUBARU OF AMERICA, INC.

Tightening Torque: N.m (kgf-m, ft-lb)

T: 6 (0.6, 4.4)
Models with Eye-Sight

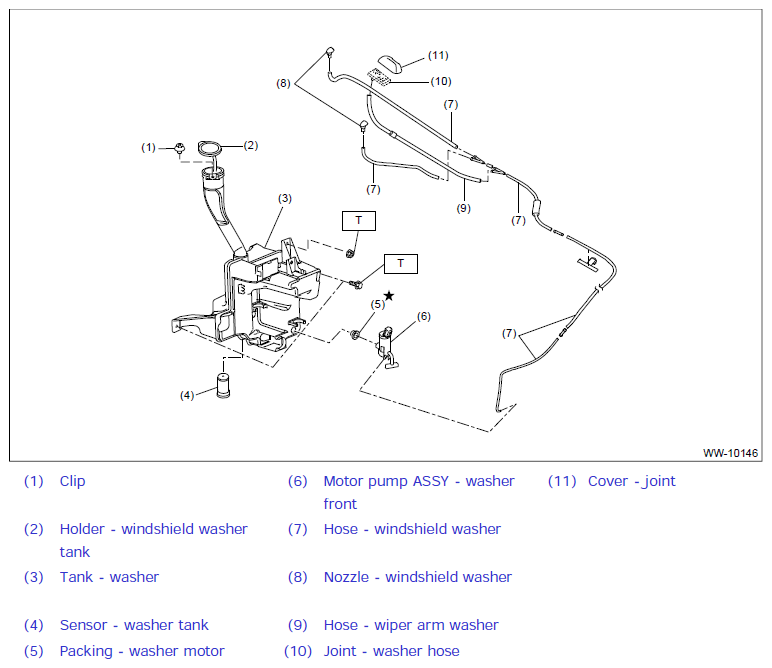

Fig 2: Exploded View Of Washer Tank Components (Models With Eye-Sight)
Courtesy of SUBARU OF AMERICA, INC.

Tightening Torque: N.m (kgf-m, ft-lb)

T: 6 (0.6, 4.4)
