Check Battery Current Sensor Unit
CAUTION:
Pay attention to polarity when measuring the resistance in the battery current sensor.

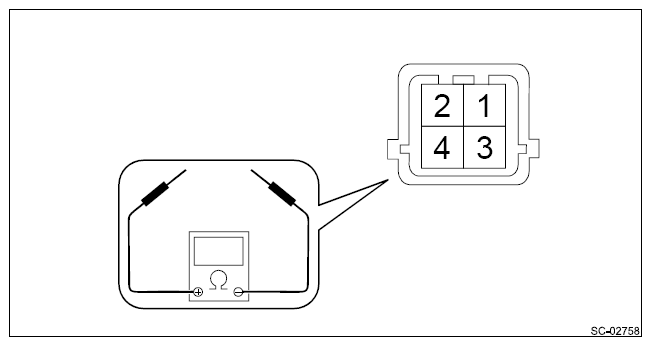

Check the resistance between the battery current sensor terminals.
 Courtesy of SUBARU OF AMERICA, INC.
|
| Terminal No. |
Standard |
| 2 (+) and 3 (-) |
0 -0.5 kΩ |
| 2 (+) and 4 (-) |
3 - 10 kΩ |
| 3 (+) and 4 (-) |
3 - 10 kΩ |
