Unit Inspection

Courtesy of SUBARU OF AMERICA, INC.

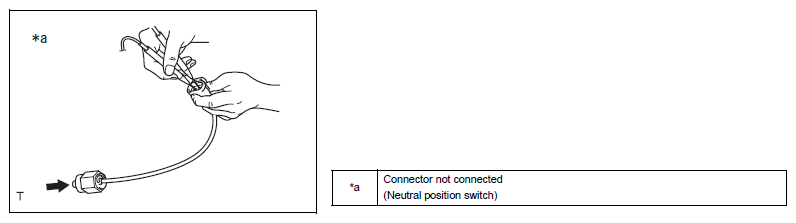

Check of neutral position switch

Measure the resistance between the terminals. Resistance

Inspection terminals	Inspection conditions	Standard value
1 - 2	When switch is pressed in	1 MΩ or more
1 - 2	When switch is not pressed in	Less than 1 Ω

If the resistance is not at the standard value, replace the neutral position switch.
