Accessory Relay (Push Button Start): Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". <Ref. to CAUTION , General Description.>

1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. <Ref. to BATTERY , NOTE, Note.>
   NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
2. Remove the cover assembly - instrument panel LWR driver. <Ref. to REMOVAL , Instrument Panel Lower Cover.>
3. Remove the knee airbag module. <Ref. to REMOVAL , Knee Airbag Module.>
4. Release the lock and remove the fuse holder.
   Fig 1: Locating Fuse Holder Accessory Relay (Push Button Start)

   Courtesy of SUBARU OF AMERICA, INC.

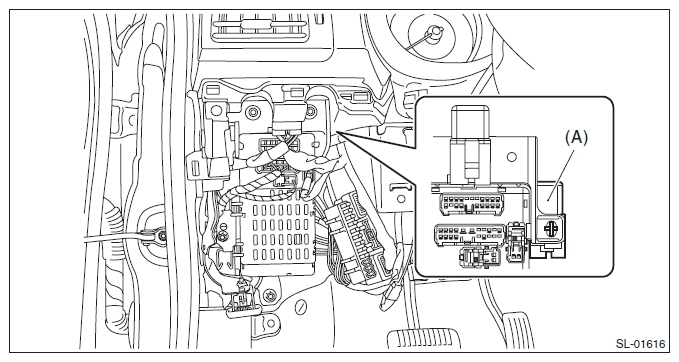

5. Remove the accessory relay (push button start) (A) from the relay and fuse box.

Fig 2: Removing Accessory Relay (Push Button Start) From Relay And Fuse Box

Courtesy of SUBARU OF AMERICA, INC.
