Lighting System: General Description: Specification

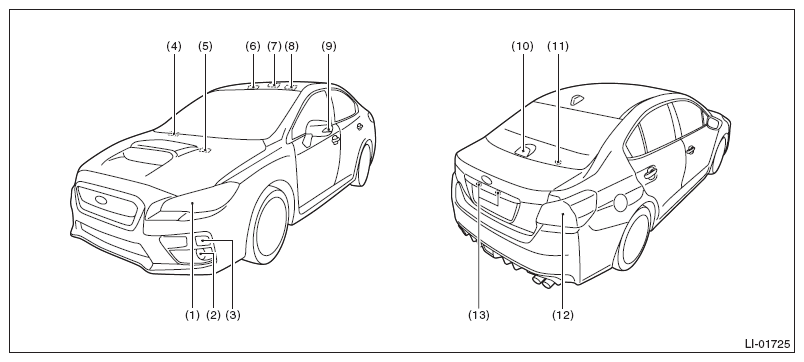

Fig 1: Vehicle Components Location

Courtesy of SUBARU OF AMERICA, INC.

No.	Description		Capacity and wattage	Type
(1)	Headlight	Low beam (halogen type)	12 V - 55 W	H11
		Low beam (LED type)	12 V - 21.6 W	(1)
		High beam	12 V - 60 W	HB3
		Parking light (halogen type)	12 V - 5 W	W5W
		Parking light (LED type)	12 V - 1.5 W (LED)	(1)
		Side marker light	12 V - 5 W	W5W
(2)	Front fog light	Model without SRF	12 V - 19 W	H16
		Model with SRF	12 V - 55 W	H11
(3)	Front turn signal light		12 V - 21 W	WY21W
(4)	Glove box light		12 V - 1.4 W (LED)	(1)
(5)	Pocket light		12 V - 1.4 W (LED)	(1)
(6)	Spot map light		12 V - 8 W	-
(7)	Room light		12 V - 8 W	-
(8)	Vanity mirror light		12 V - 2 W	-
(9)	Side turn signal light		12 V - 1.1 W (LED)	(1)
(10)	High-mounted stop light		12 V - 0.7 W (LED)	(1)
(11)	Trunk room light		12 V - 5 W	W5W
(12)	Rear combination light	Tail & stop light	12 V - 0.3/3.5 W (LED)	(1)
		Back-up light	12 V - 16 W	W16W
		Turn signal light	12 V - 21 W	WY21W
		Side marker light	12 V - 5 W	W5W
(13)	License plate light		12 V - 5 W	W5W
(1) Non-disassembly type
