Select lever: Removal

Removal of console box ASSY
(Refer to Removal )
Removal of under cover front AL (refer to Removal )
Removal of under cover COMPL T/M (refer to Installation )
Disconnection of floor shift gear shifting rod SUB-ASSY No. 1
1. While pressing the shift lock release button, set the select lever to N position.

  Fig 1: Locating Console Box Assembly Shift Lock Release Button
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the nut and disconnect the floor shift gear shifting rod SUB-ASSY No. 1 from the connecting rod swivel.

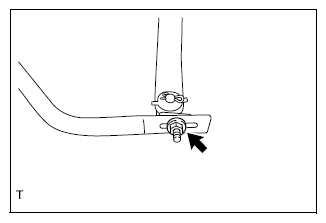

Fig 2: Locating Floor Shift Gear Shifting Rod Sub Assembly Nut
Courtesy of SUBARU OF AMERICA, INC.
Removal of select lever ASSY
1. Disconnect the connector.

  Fig 3: Locating Select Lever Assembly Connector
  Courtesy of SUBARU OF AMERICA, INC.
2. Release the wiring harness clamp, and disconnect the wiring harness.

  Fig 4: Identifying Console Box Assembly Wiring Harness Clamp
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove 4 bolts to remove the select lever ASSY.

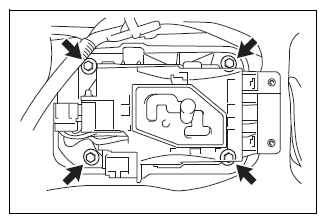

Fig 5: Locating Select Lever Assembly Bolts

G11259462

Courtesy of SUBARU OF AMERICA, INC.
