Transmission Control Module (TCM): Removal
- Disconnect the ground terminal from battery sensor. < Ref. to
BATTERY
, NOTE, Repair Contents. >
- Remove the air cleaner case. < Ref. to
REMOVAL
, Air Cleaner Case. >

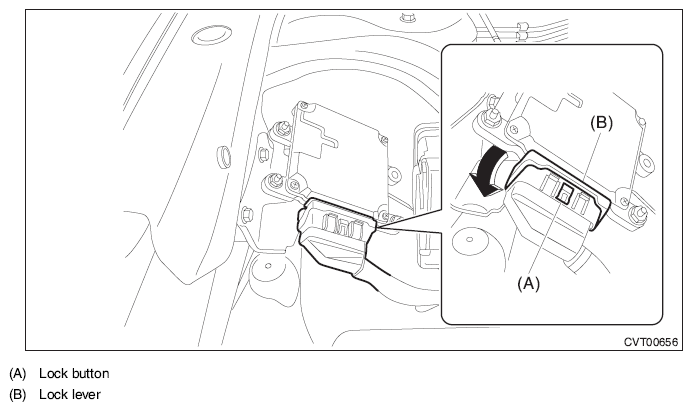

- Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the TCM.
Courtesy of SUBARU OF AMERICA, INC.
