Front Wiper

WARNING: This page is about a different car, the 2015 Subaru XV Crosstrek and 2015 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Models without EyeSight

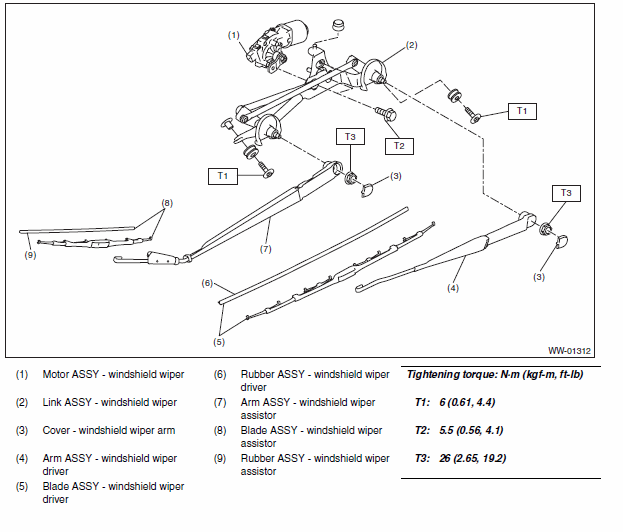

Fig 1: Identifying Front Wiper Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.61, 4.4)

T2: 5.5 (0.56, 4.1)

T3: 26 (2.65, 19.2)

Models with EyeSight

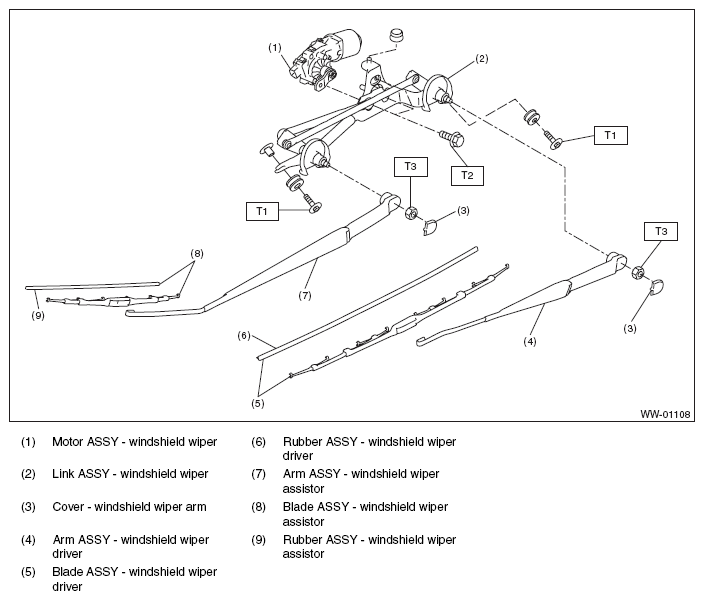

Fig 2: Identifying Front Wiper Components

Courtesy of SUBARU OF AMERICA, INC.

T1: 6(0.61, 4.4)

T2: 5.5 (0.56, 4.1)

T3: 26 (2.66, 19.2)
