Unit And Rear Gate

WARNING: This page is about a different car, the 2016 Subaru Outback, 2016 Subaru Legacy, 2015 Subaru Outback, and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

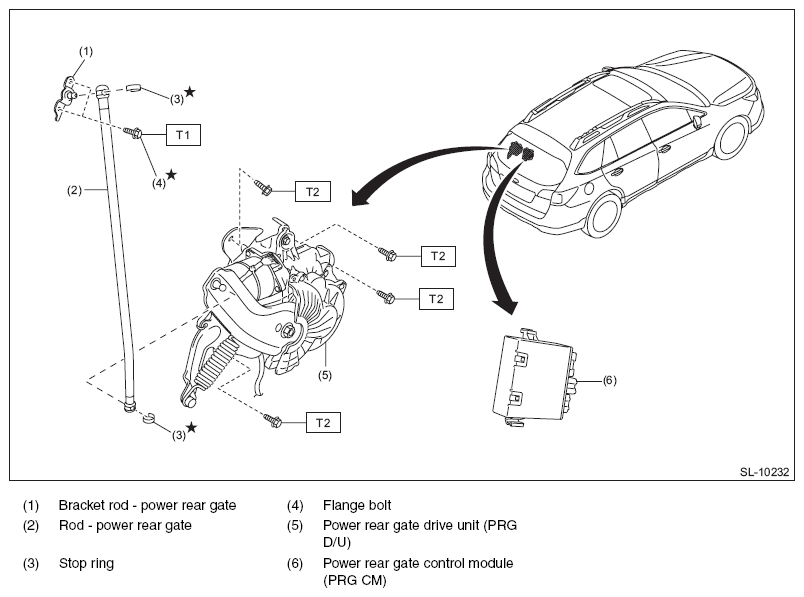

Fig 1: Identifying Unit And Rear Gate Related Components With Torque Specification (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6, 11.4)

T2: 25 (2.5, 18.4)

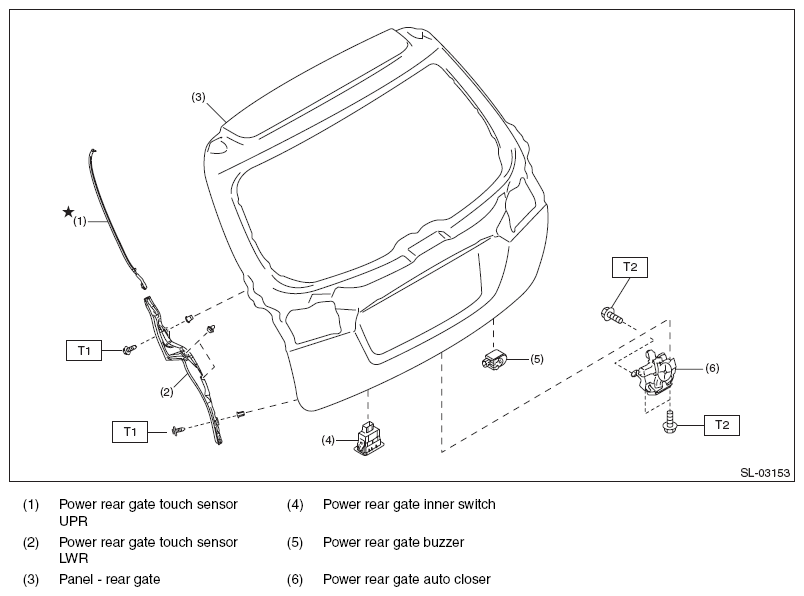

Fig 2: Identifying Unit And Rear Gate Related Components With Torque Specification (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1.5 (0.2, 1.1)

T2: 25 (2.5, 18.4)
