Front Wiper Arm: Installation

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Install the arm assembly - windshield wiper.
NOTE: Since the arm assembly - windshield wiper LH and RH can interfere with each other, install the passenger's side first.
1. Assemble the arm assembly - windshield wiper so that the blade assembly - windshield wiper is aligned to the ceramic print point mark of the windshield glass.

  Fig 1: Assembling Windshield Wiper Arm Assembly
  Courtesy of SUBARU OF AMERICA, INC.
2. Tighten the arm assembly - windshield wiper to specified torque and install the cap.
  Tightening torque:

  22 N.m (2.2 kgf-m, 16.2 ft-lb)

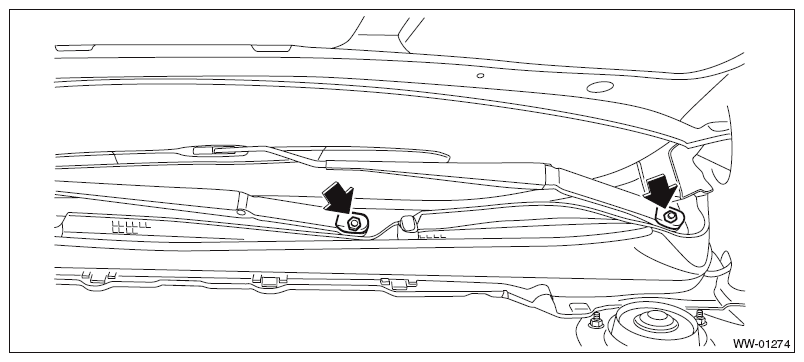

  Fig 2: Locating Windshield Wiper Arm Assembly LH And RH Nuts
  Courtesy of SUBARU OF AMERICA, INC.
Check the position of windshield wiper. < Ref. to ADJUSTMENT , Front Wiper Arm. >
