Engine Assembly: Installation

WARNING: This page is about a different car, the 2013 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine mounting onto the engine.

    Tightening torque:

    35 N.m (3.6 kgf-m, 25.8 ft-lb)

  2. Apply a small amount of grease to splines of main shaft.

    Grease:

    NICHIMOLY N-130 or equivalent

  3. Position the engine in engine compartment and align it with transmission.
    NOTE: Be careful not to damage adjacent parts or body panels with crank pulley, oil level gauge, etc.
  4. Install the bolts which hold upper side of transmission to engine.

    Tightening torque:

    50 N.m (5.1 kgf-m, 36.9 ft-lb)

    Fig 1: Locating Upper Side Transmission To Engine Mounting Bolts
    G05335715Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the lifting device and wire ropes.
    Fig 2: Supporting Engine Using Lifting Device And Wire Ropes
    G04997613Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the garage jack.
  7. Install the pitching stopper.

    Tightening torque:

    T1: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

    T2: 58 N.m (5.9 kgf-m, 42.8 ft-lb)

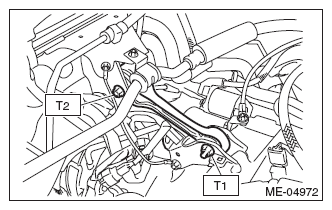

    Fig 3: Installing Pitching Stopper
    G08540282Courtesy of SUBARU OF AMERICA, INC.
  8. Install the starter. < Refer to INSTALLATION , Starter. >
  9. Install the power steering pump.
    1. Install the power steering pump onto the engine.

      Tightening torque:

      Refer to "COMPONENT" of "Power Steering" for the tightening torque. < Refer to  COMPONENT  , General Description. >

      Fig 4: Removing/Installing Power Steering Pump
      G05955114Courtesy of SUBARU OF AMERICA, INC.
    2. Connect the connector to the power steering pump switch.
      Fig 5: Locating Power Steering Pump Switch Connector
      G08538645Courtesy of SUBARU OF AMERICA, INC.
    3. Install the front side belt. < Refer to FRONT SIDE BELT , INSTALLATION, V-belt. >
  10. Lift up the vehicle.
  11. Install the bolts and nuts which hold lower side of the transmission to engine.

    Tightening torque:

    50 N.m (5.1 kgf-m, 36.9 ft-lb)

    Fig 6: Locating Transmission To Engine Holding Bolts And Nuts
    G05002964Courtesy of SUBARU OF AMERICA, INC.
  12. Install the nuts which hold the engine mounting to the crossmember.
    NOTE: Make sure that the engine mounting nuts (A) and locator (B) are securely installed.

    Tightening torque:

    45 N.m (4.6 kgf-m, 33.2 ft-lb)

    Fig 7: Identifying Engine Mounting Nuts And Locator
    G05955136Courtesy of SUBARU OF AMERICA, INC.
  13. Connect the ground cable.

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

    Fig 8: Disconnecting Ground Cable
    G05955115Courtesy of SUBARU OF AMERICA, INC.
  14. Install the joint pipe and front exhaust pipe. < Refer to INSTALLATION , Front Exhaust Pipe. > < Refer to REMOVAL , Joint Pipe. >
  15. Install the turbocharger. < Refer to INSTALLATION , Turbocharger. >
  16. Install the center exhaust pipe. < Refer to INSTALLATION , Center Exhaust Pipe. >
  17. Connect the following hoses.
    1. Fuel delivery hose, fuel return hose and evaporation hose
    2. Heater inlet hose and heater outlet hose
    3. Brake booster vacuum hose
    4. A/C pressure hose < Refer to INSTALLATION , Hose and Pipe. >
  18. Secure the generator cord using the clip (B) and connect the connector (A) to A/C compressor.
    Fig 9: Identifying A/C Compressor Connector And Generator Cord Clip
    G08540263Courtesy of SUBARU OF AMERICA, INC.
  19. Connect the following connectors and terminals.
    1. Generator connector and terminal

      Tightening torque:

      15 N.m (1.5 kgf-m, 11.1 ft-lb)

    2. Secondary air pump connector
  20. Install the engine harness connector to engine harness bracket, then connect the bulkhead harness connector to the engine harness connector.
    Fig 10: Locating Bulkhead Harness Connector
    G08539771Courtesy of SUBARU OF AMERICA, INC.
  21. Install the intercooler. < Refer to INSTALLATION , Intercooler. >
  22. Install the radiator. < Refer to INSTALLATION , Radiator. >
  23. Install the coolant filler tank. < Refer to INSTALLATION , Coolant Filler Tank. >
  24. Install the air cleaner case and air intake duct. < Refer to INSTALLATION , Air Cleaner Case. > < Refer to INSTALLATION , Air Intake Duct. >
  25. Install the battery. < Refer to INSTALLATION , Battery. >
  26. Fill engine coolant. < Refer to FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
  27. Charge the A/C system with refrigerant. < Refer to PROCEDURE , Refrigerant Charging Procedure. >
  28. Install the V-belt cover.

    Tightening torque:

    13 N.m (1.3 kgf-m, 9.6 ft-lb)

    Fig 11: Locating V-Belt Cover Mounting Bolt
    G05660761Courtesy of SUBARU OF AMERICA, INC.
  29. Change the bolt installation position from (B) to (A), then close the front hood.

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

    Fig 12: Identifying Front Hood Mounting Bolts
    G05660760Courtesy of SUBARU OF AMERICA, INC.
