Turbo Model

Install in the reverse order of removal.

Tightening torque: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

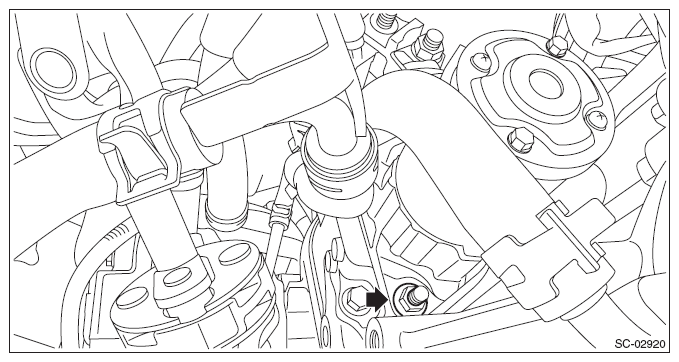

Fig 1: Locating Bolt At Top Of Starter

Courtesy of SUBARU OF AMERICA, INC.

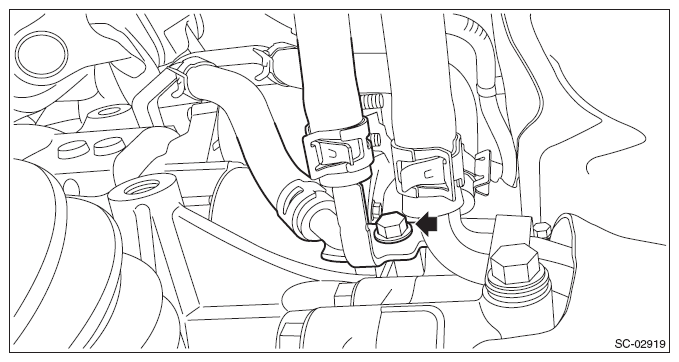

Fig 2: Locating Nut At Bottom Of Starter

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: 16 N.m (1.6 kgf-m, 11.8 ft-lb)

Fig 3: Locating Bolt Of CVTF Cooler Pipe To Transmission

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: 10 N.m (1.0 kgf-m, 7.4 ft-lb)

Fig 4: Locating Nut Of Starter

Courtesy of SUBARU OF AMERICA, INC.
