Circuit Figure
Circuit Figure

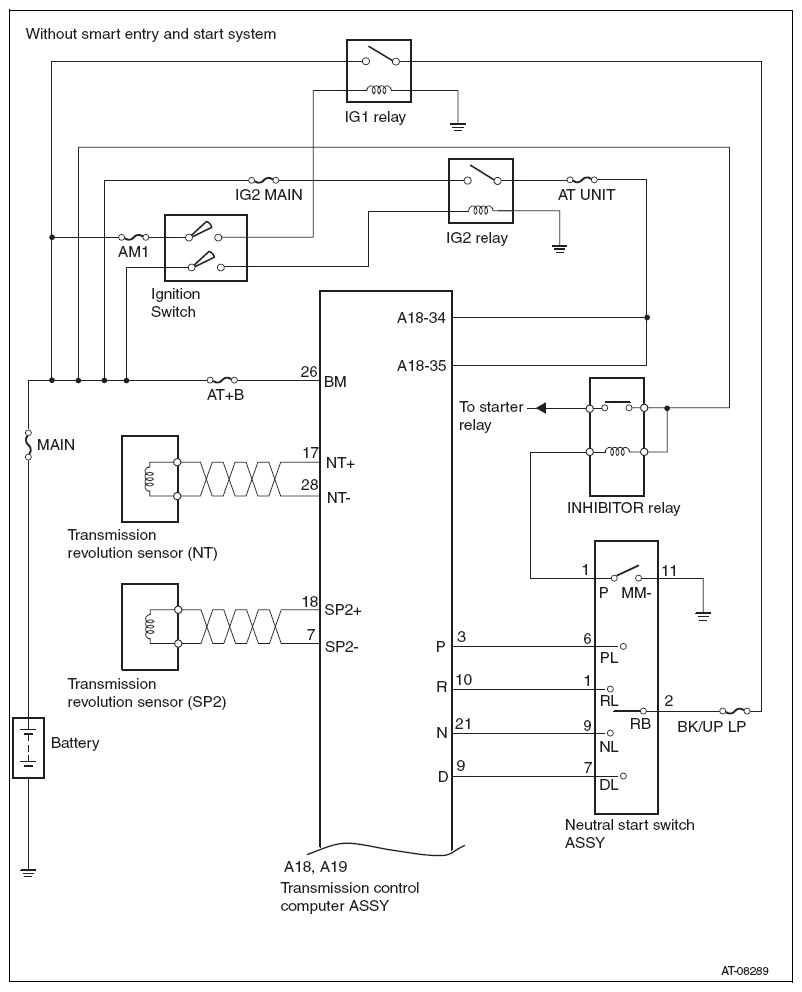

Fig 1: Transmission Control Computer Assembly Circuit Diagram (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

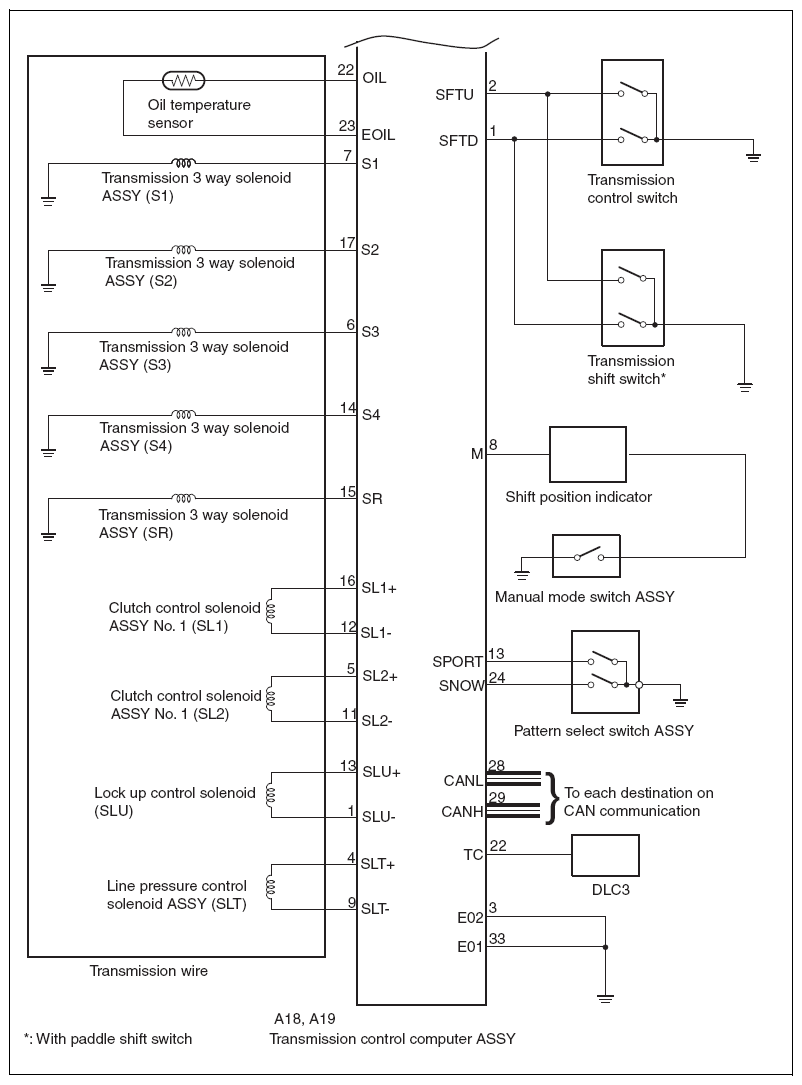

Fig 2: Transmission Control Computer Assembly Circuit Diagram (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

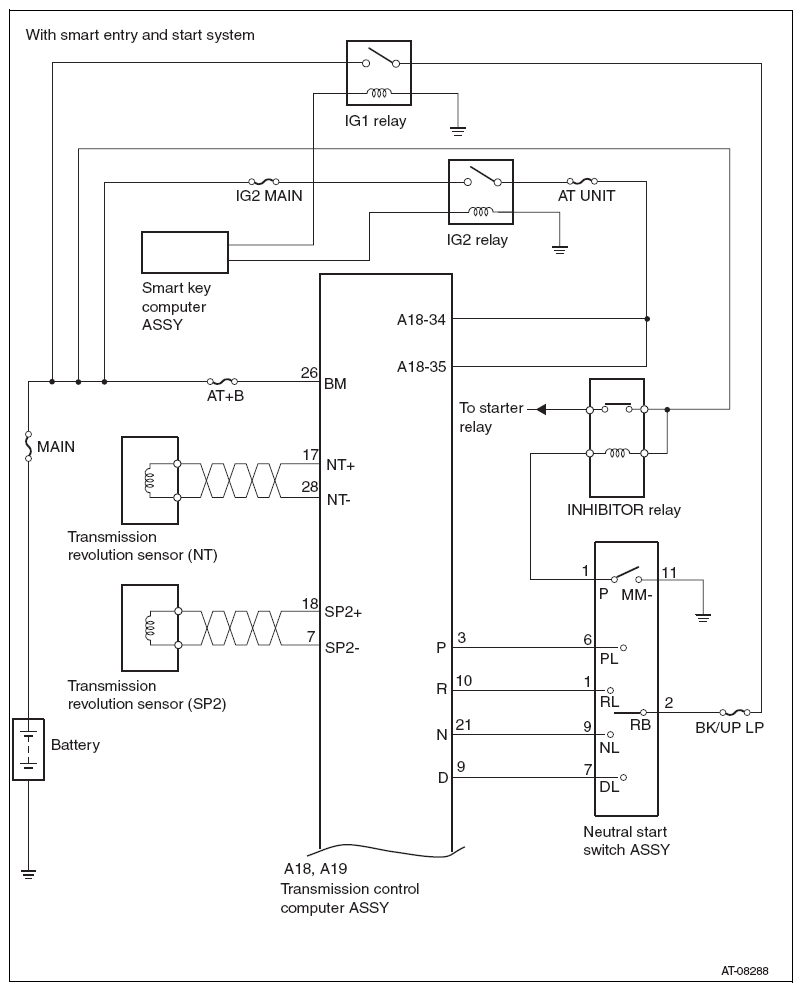

Fig 3: Transmission Control Computer Assembly Circuit Diagram (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Fig 4: Transmission Control Computer Assembly Circuit Diagram (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
