Home >> Subaru >> 2015 >> BRZ Limited, Automatic Trans >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Key Warning System >> Key Warning System >> Key Reminder Buzzer Does Not Sound >> Circuit figure

Circuit figure

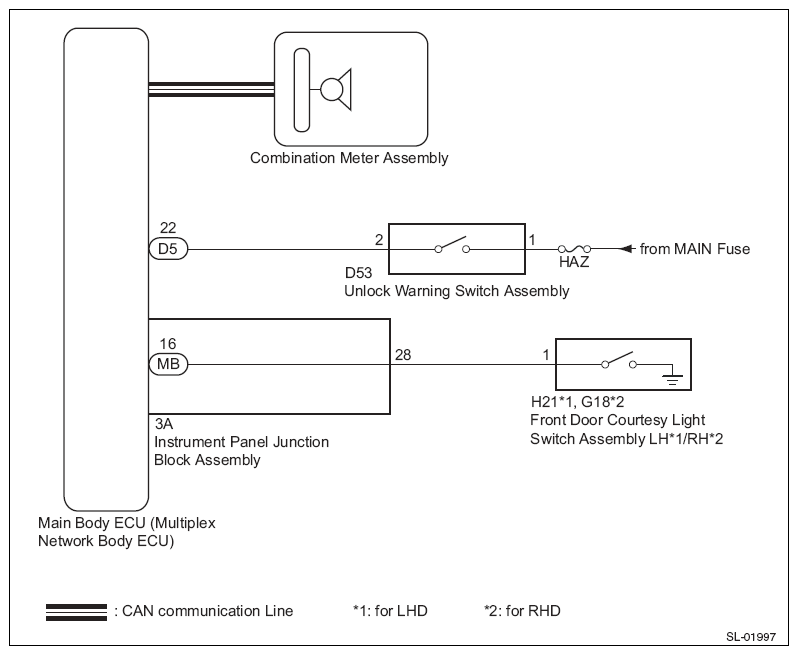

Fig 1: Combination Meter Assembly Circuit Diagram

G08557460

Courtesy of SUBARU OF AMERICA, INC.
