Section 6 (Keyless Access With Push Button Start System (Diagnostics)): Electrical Component Location: Location

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

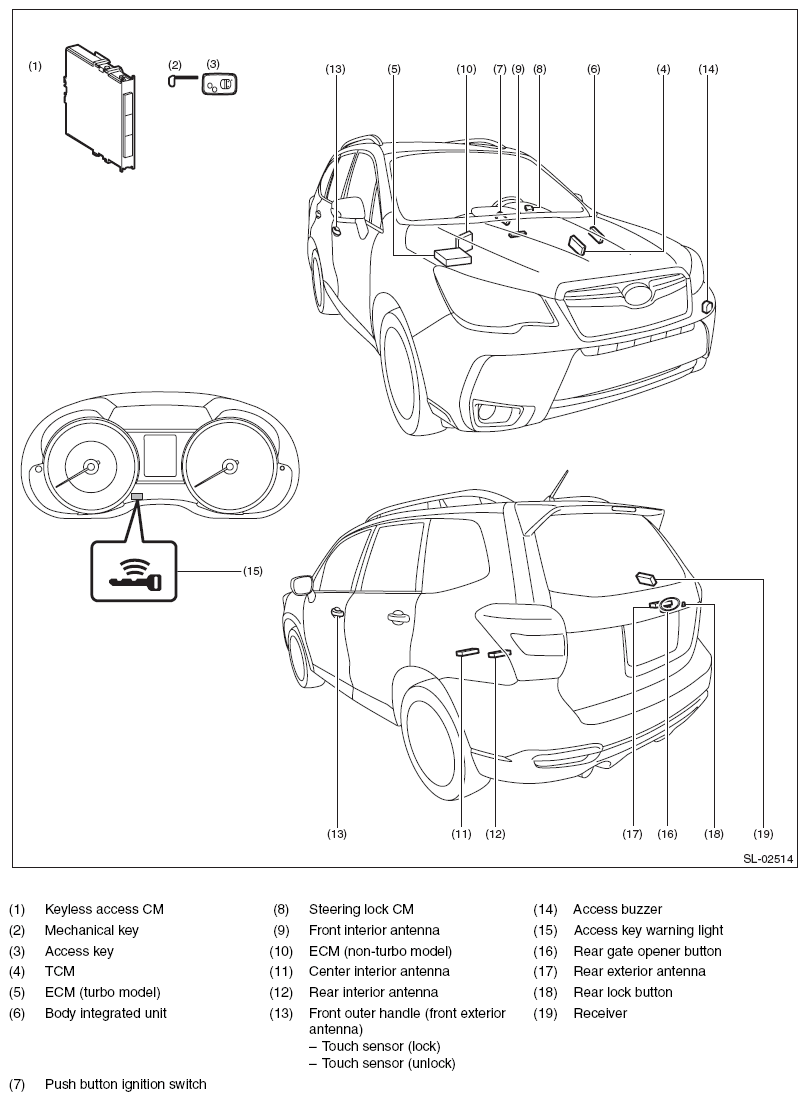

Fig 1: Keyless Access System Electrical Components Location
G09485368Courtesy of SUBARU OF AMERICA, INC.
