Home >> Subaru >> 2014 >> BRZ Premium >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transaxle & Differential >> Counter Gear ASSY >> Exploded View

Exploded View

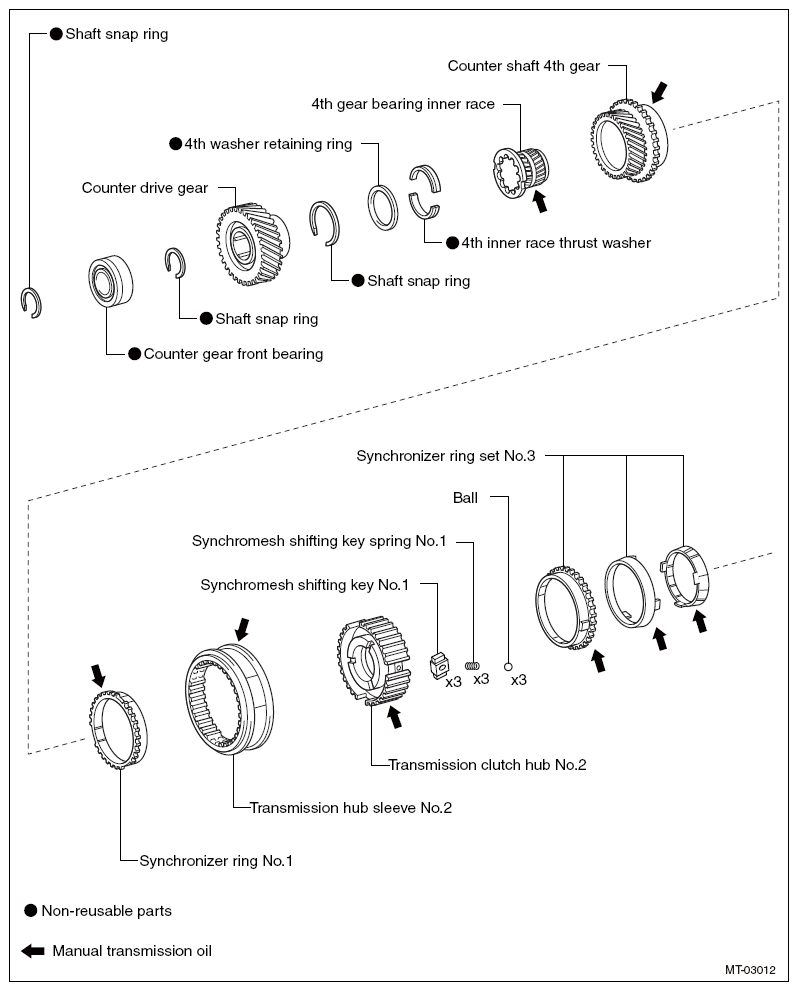

Fig 1: Exploded View Of Counter Gear Assembly (1 Of 2)
G08555114Courtesy of SUBARU OF AMERICA, INC.
NOTE: Be sure to use the recommended product or the substitute product for manual transmission oil. (Refer to MANUAL TRANSMISSION OIL  )
NOTE: Be sure to use the recommended product or the substitute product for manual transmission oil. (Refer to MANUAL TRANSMISSION OIL  )
