Circuit Figure

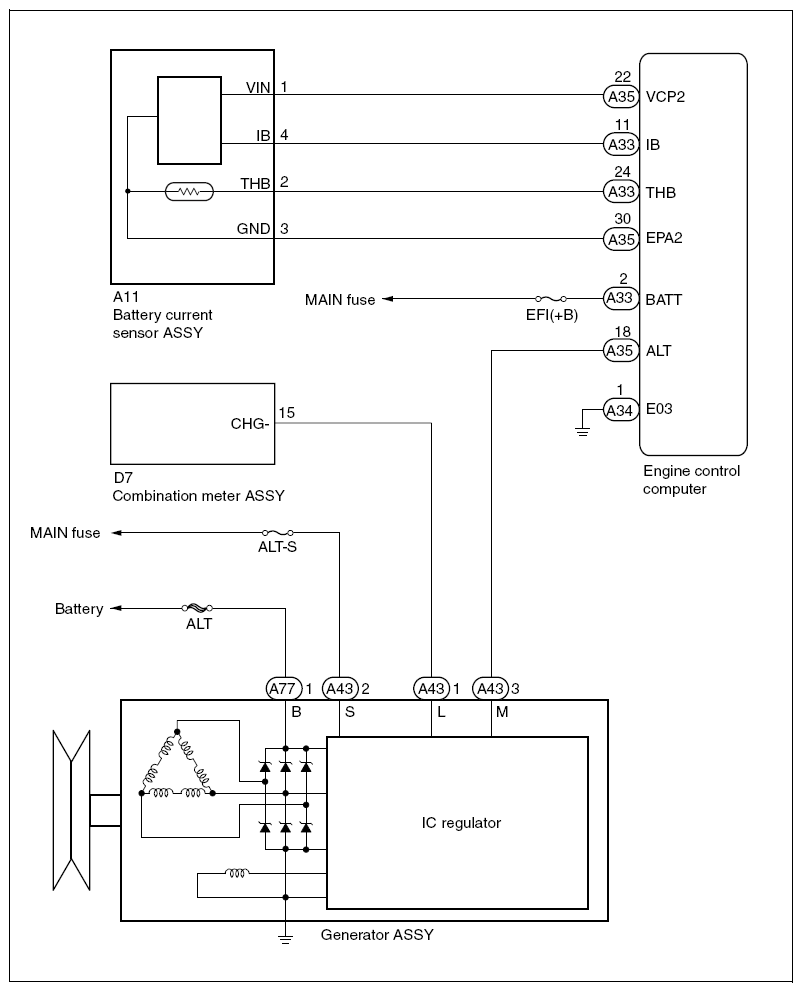

Fig 1: Charging System - Circuit Diagram

G08557294

Courtesy of SUBARU OF AMERICA, INC.
