Home >> Subaru >> 2013 >> Outback R >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls (Diagnostics) (H6DO) >> Drive Cycle >> Procedure >> Drive Cycle C >> Diagnostic procedure

Diagnostic procedure

Drive according to the drive pattern described below.

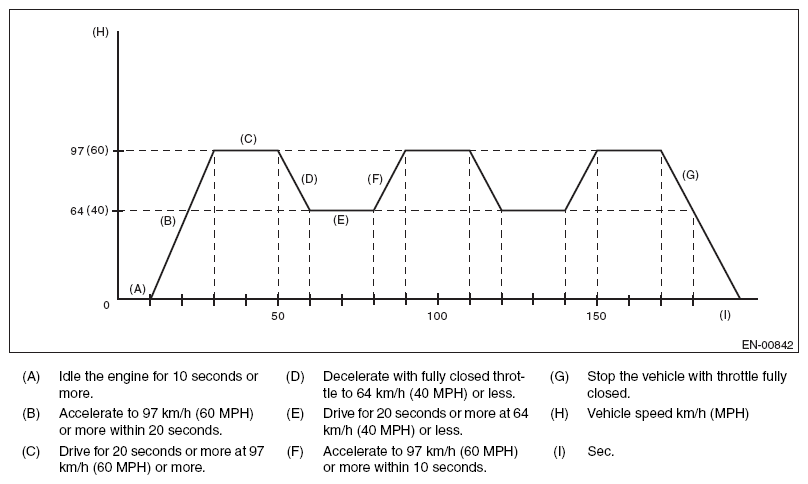

Fig 1: Vehicle Driving Pattern (Drive Cycle C)

G08581590

Courtesy of SUBARU OF AMERICA, INC.
