Engine Controls (Diagnostics) (WRX): Electrical Component Location: Location: Sensor

Models without SI-DRIVE

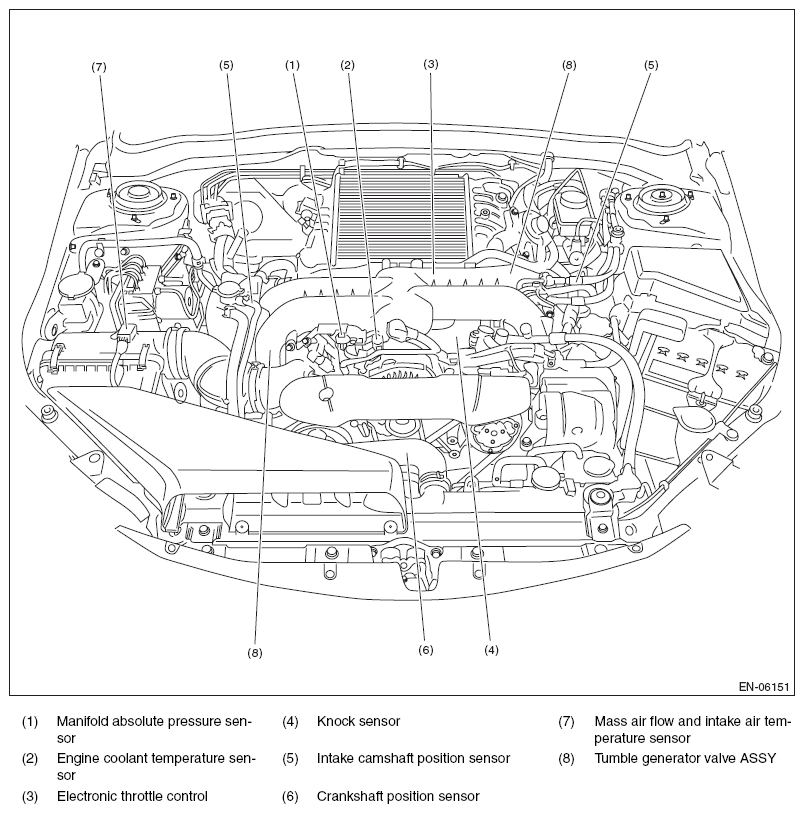

Fig 1: Identifying Sensor (Models Without SI-Drive)
Courtesy of SUBARU OF AMERICA, INC.

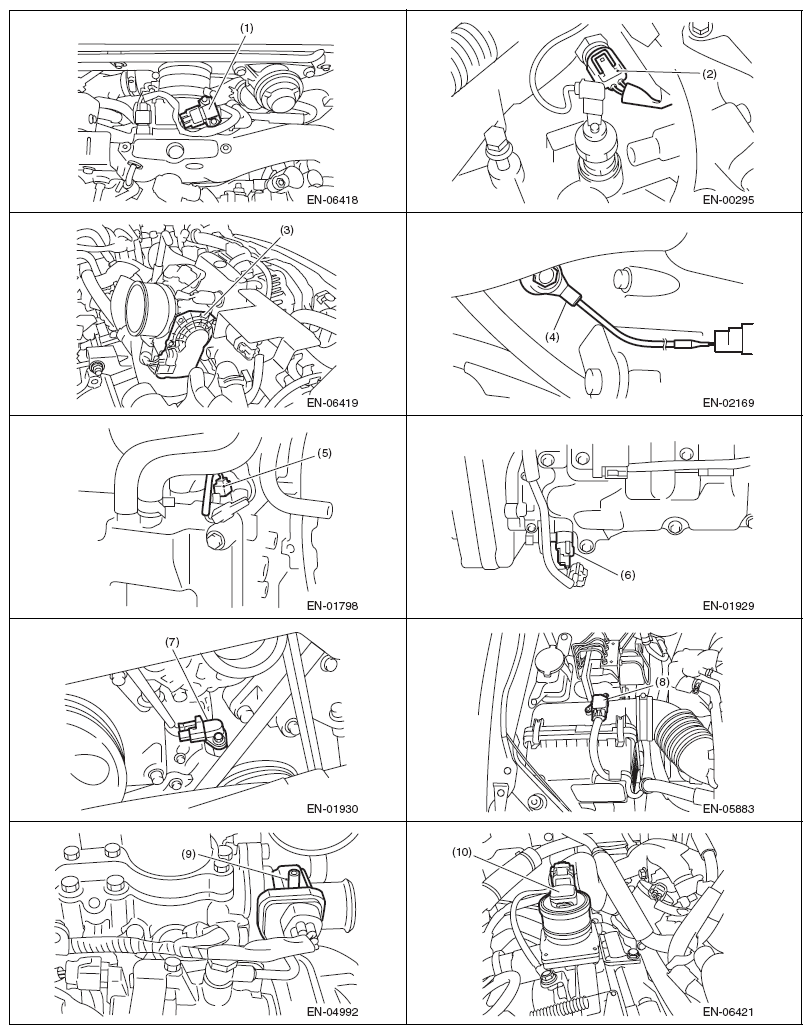

Fig 2: Identifying Tumble Generator Valve Assembly
Courtesy of SUBARU OF AMERICA, INC.
Models with SI-DRIVE

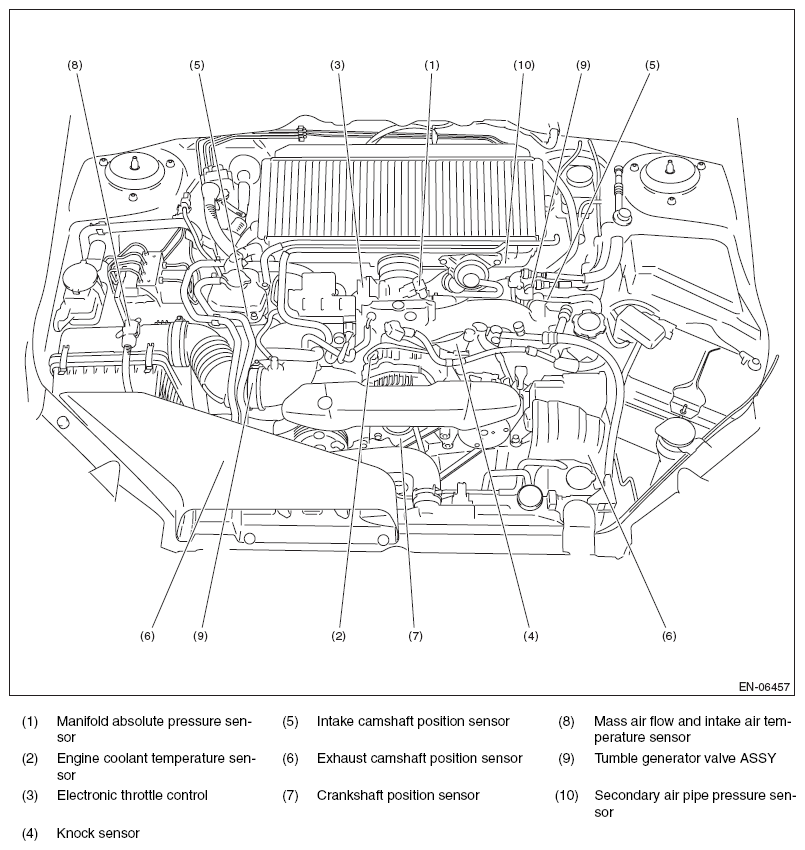

Fig 3: Identifying Sensor (Models With SI-Drive)
Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Identifying Secondary Air Pipe Pressure Sensor
Courtesy of SUBARU OF AMERICA, INC.

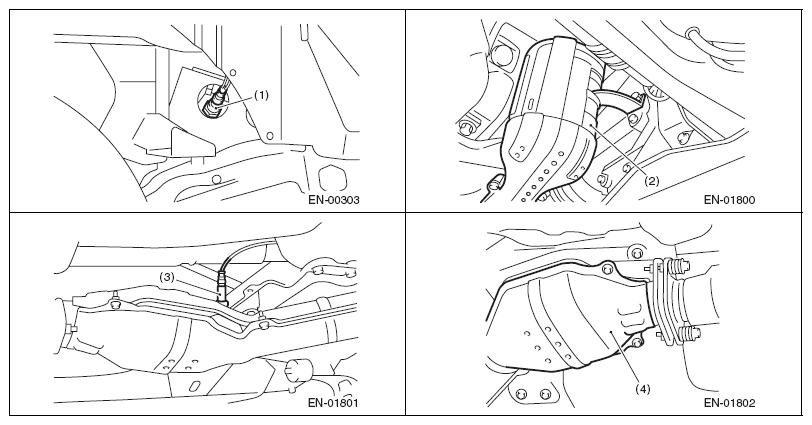

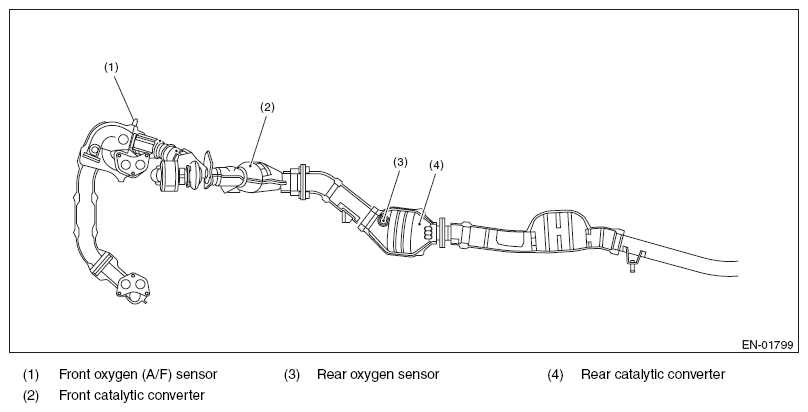

Fig 5: Identifying Front And Rear Oxygen Sensors And Catalytic Converters
Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Identifying Rear Catalytic Converter
Courtesy of SUBARU OF AMERICA, INC.

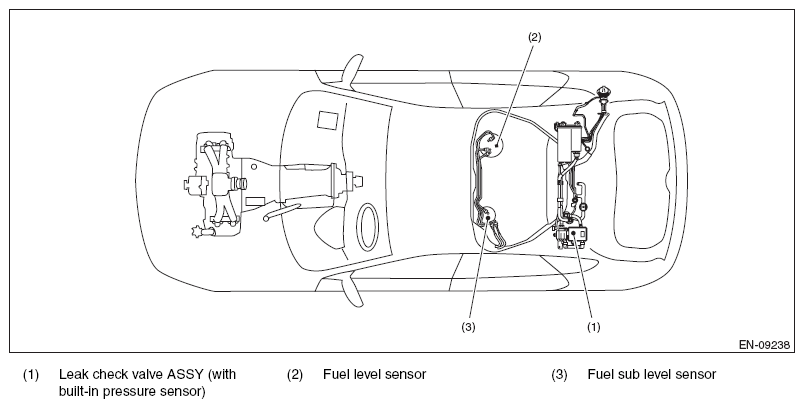

Fig 7: Identifying Leak Check Valve Assembly, Fuel Level Sensor And Fuel Sub Level Sensor
Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Identifying Fuel Sub Level Sensor
Courtesy of SUBARU OF AMERICA, INC.
