Non-Turbo Model

  1. Replace the belts if cracks, fraying or wear are found.
  2. Make sure that the belt tension adjuster assembly is not stuck.


  1. Remove the V-belt covers.
  2. Remove the air intake duct (Rear). < Refer to REMOVAL , Air Intake Duct. >
  3. Install the tool to belt tension adjuster assembly installation bolt.
  4. Rotate the tool clockwise and loosen the V-belt to remove.

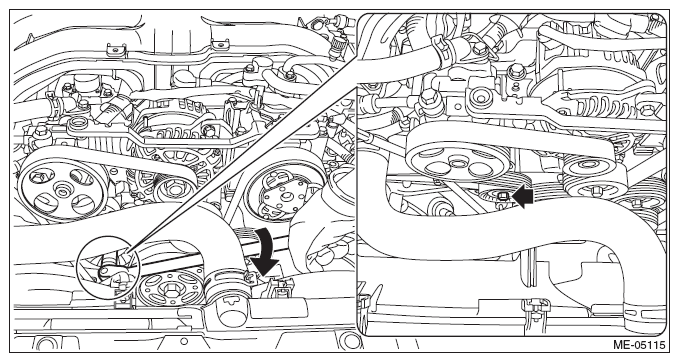

    Fig 1: Loosening V-Belt
    G08570032Courtesy of SUBARU OF AMERICA, INC.
  5. Install in the reverse order of removal.
    CAUTION:
    • Be sure the V-belt is free from oil, grease and coolant.
    • Wipe off any dust, oil or water on the groove of each pulley with cloth.

    Tightening torque:

    V-belt cover

    13 N.m (1.3 kgf-m, 1.6 ft-lb)
