Circuit Figure

WARNING: This page is about a different car, the 2019 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

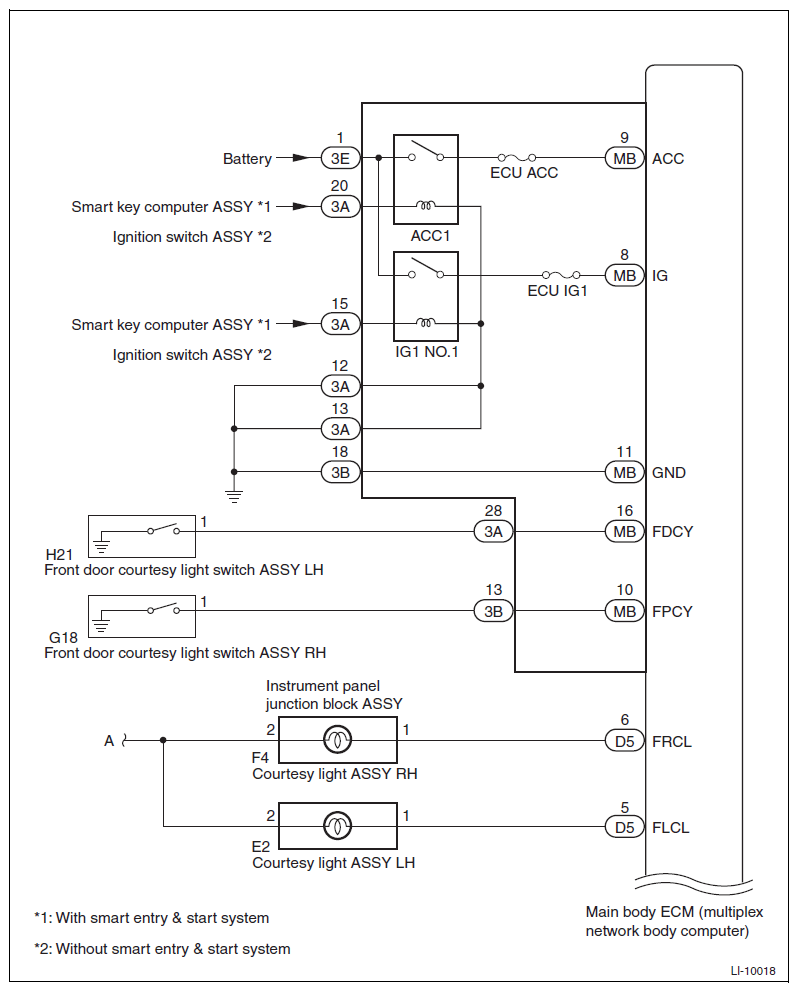

G11261594Courtesy of SUBARU OF AMERICA, INC.

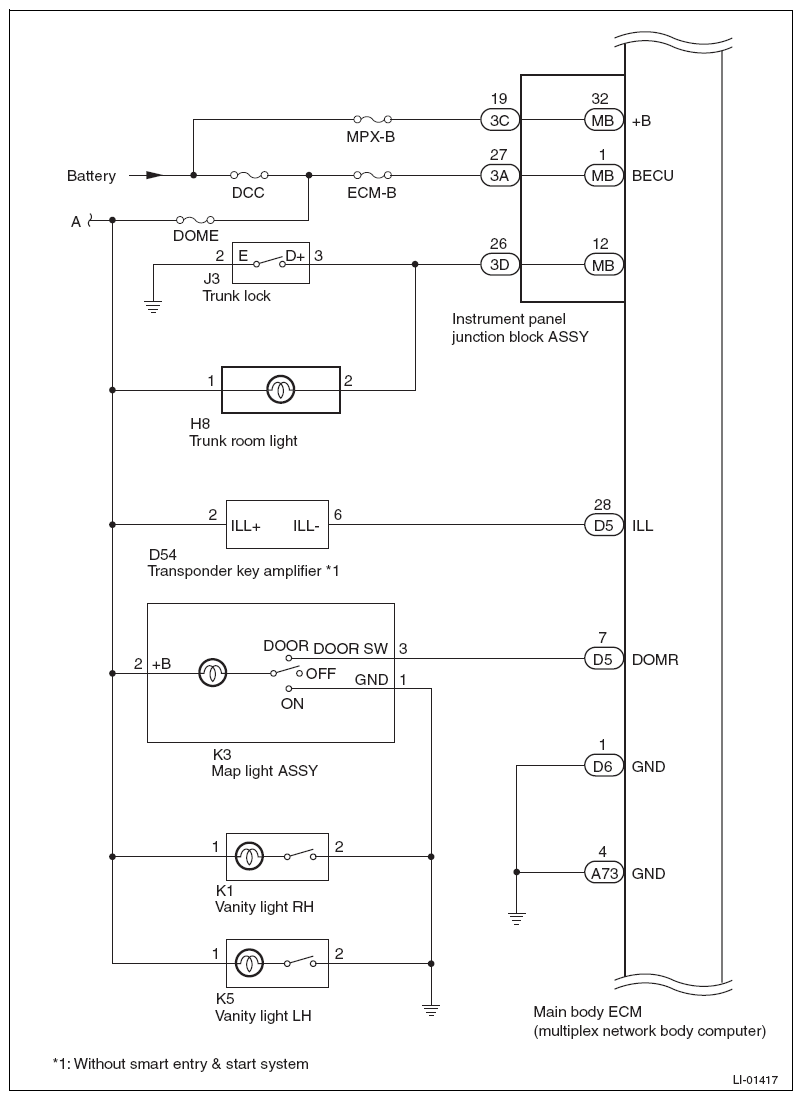

G08557578Courtesy of SUBARU OF AMERICA, INC.

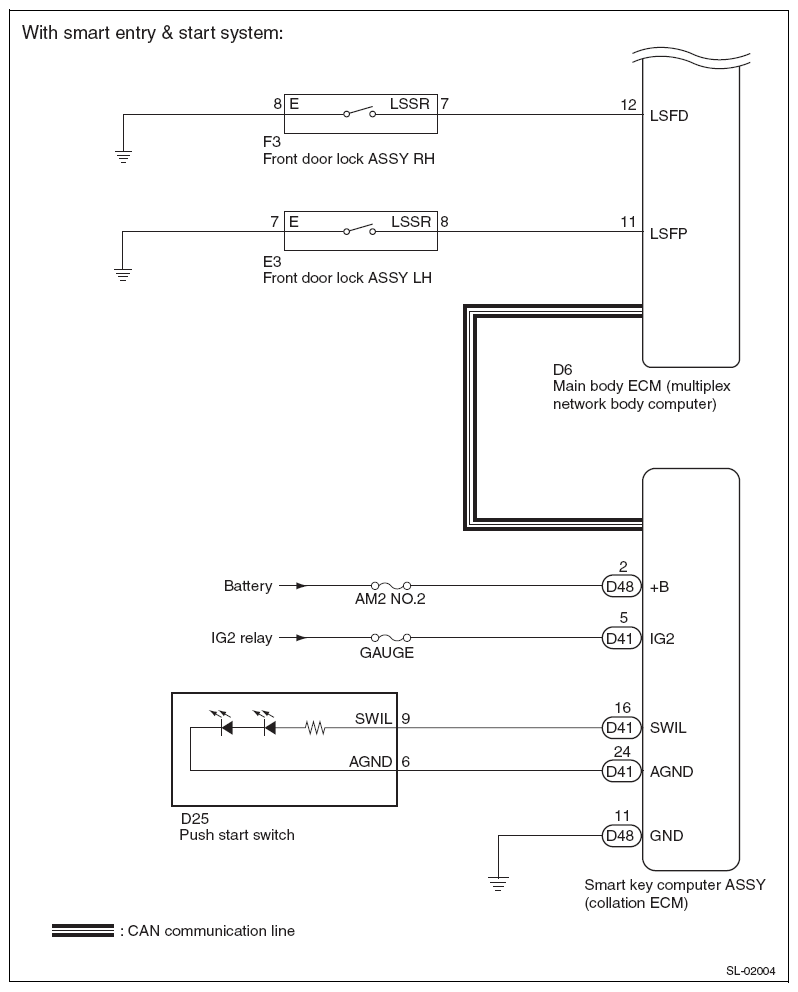

G08557579Courtesy of SUBARU OF AMERICA, INC.
