Components With Torque Specifications

WARNING: This page is about a different car, the 2019 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

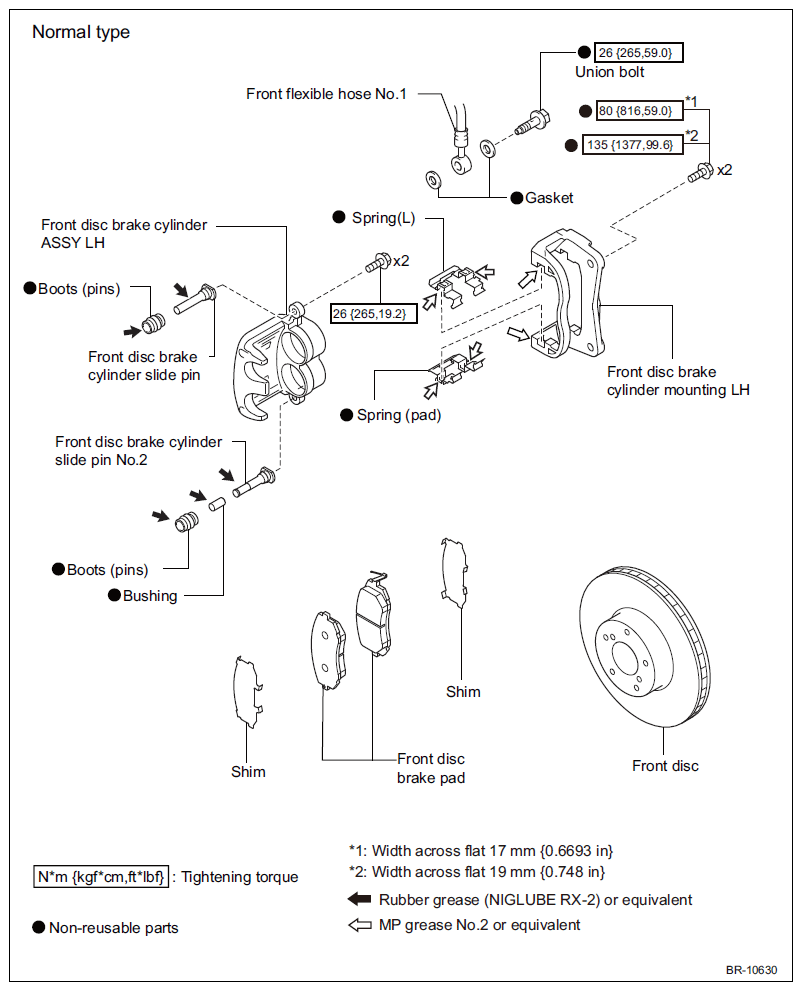

Fig 1: Exploded View Of Front Brake Components (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

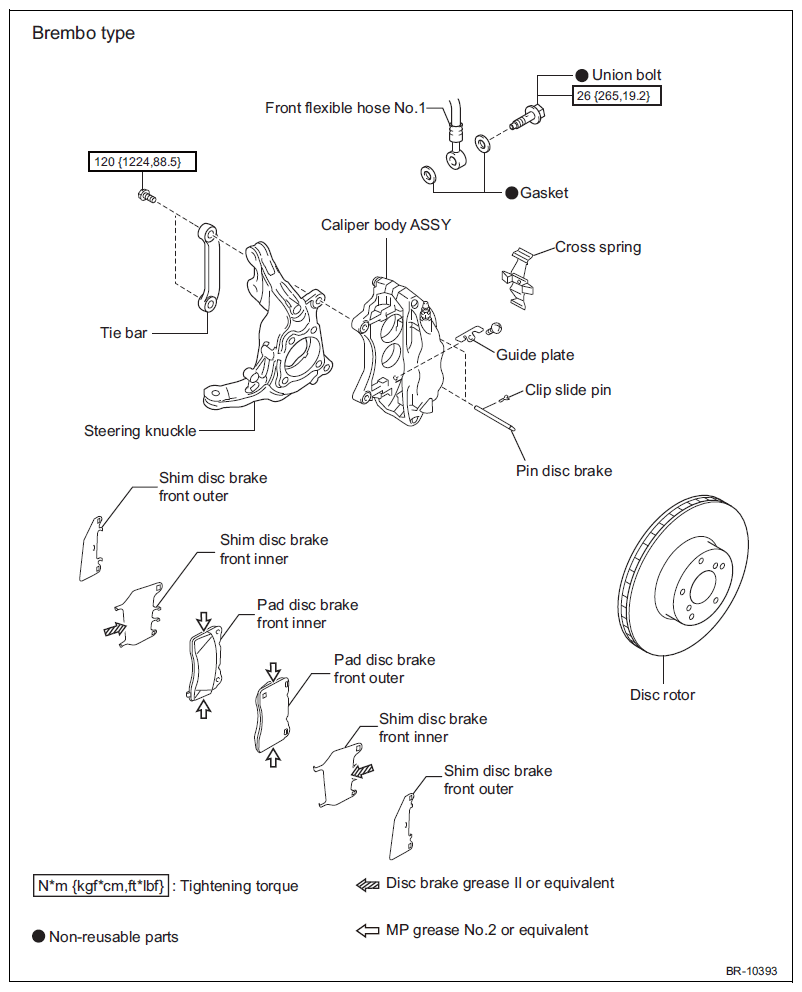

Fig 2: Exploded View Of Front Brake Components (Brembo Type) (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

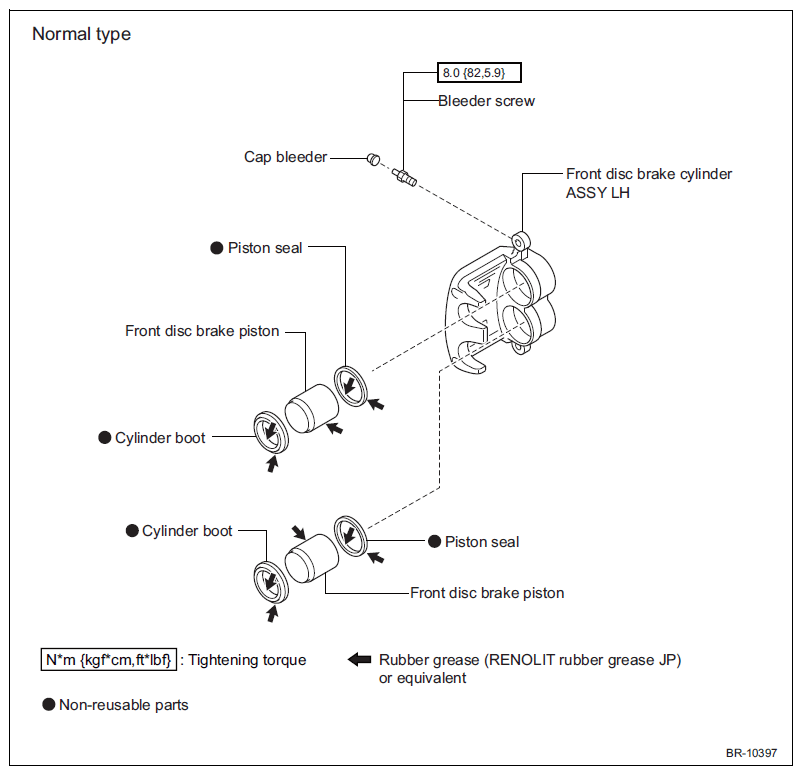

Fig 3: Exploded View Of Front Brake Components (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

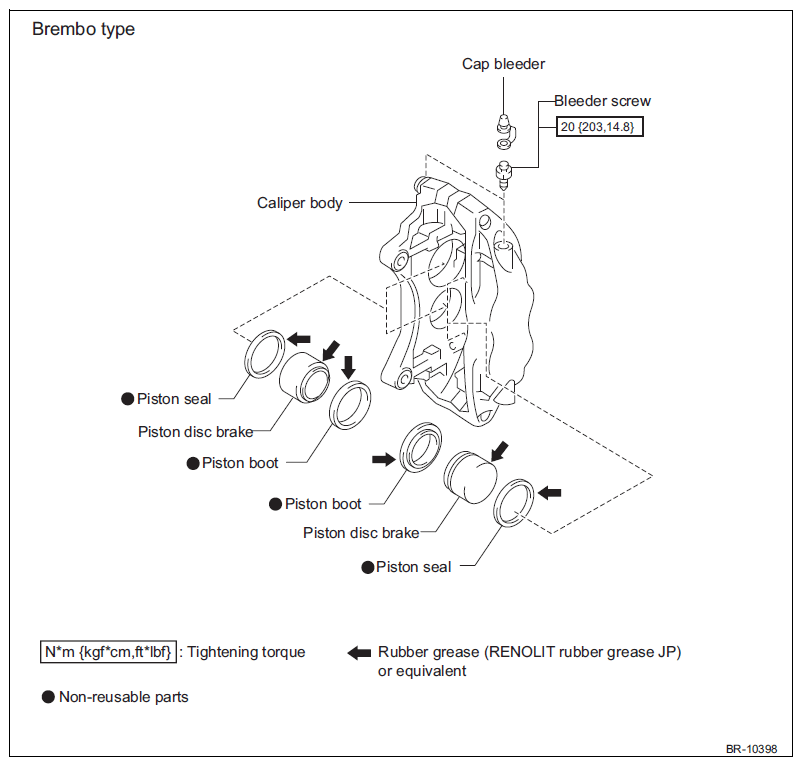

Fig 4: Exploded View Of Front Brake Components (Brembo Type) (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
