General Tool
WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
| TOOL NAME | REMARKS |
|---|---|
| Circuit tester | Used for checking voltage and continuity. |
NOTE:
Refer to the data described below, prepare the materials to make a front washer nozzle adjustment tool.
Materials
- Vertebra of wiper blade which is to be discarded
- Vinyl tape

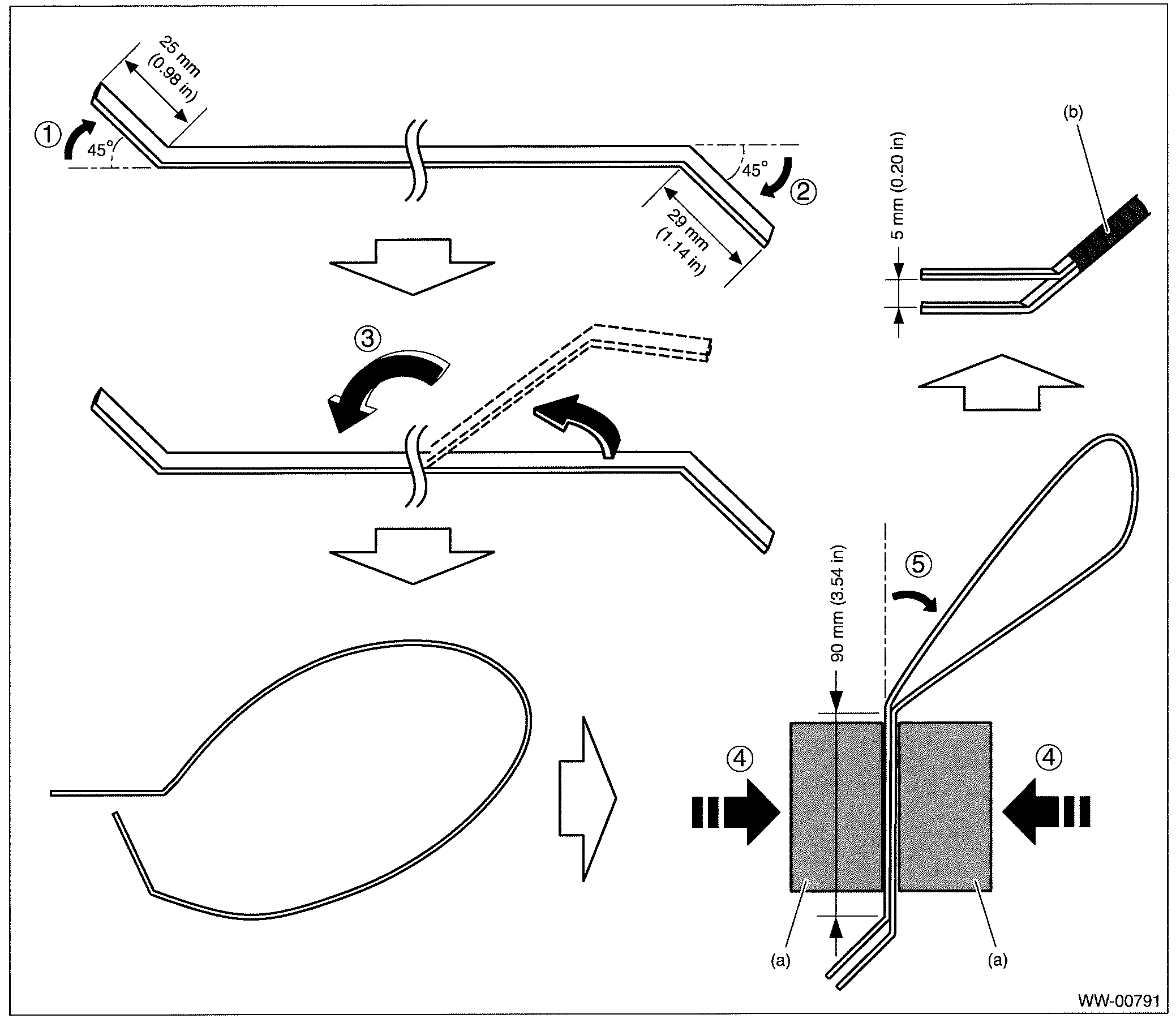

Steps of making a front washer nozzle adjustment tool
- Bend the vertebra at the position 25 mm (0.98 in) away from its end by 45°.
- Bend the vertebra at the position 29 mm (1.14 in) away from the other end by 45°.
- Double up the vertebra so that the longer end (29 mm (1.14 in)) comes upward.
- Secure the vertebra with a vise (a) so that the tip clearance becomes 5 mm (0.20 in).
- Bend the vertebra at the position approximately 90 mm (3.54 in) away from the bending point for the longer end.

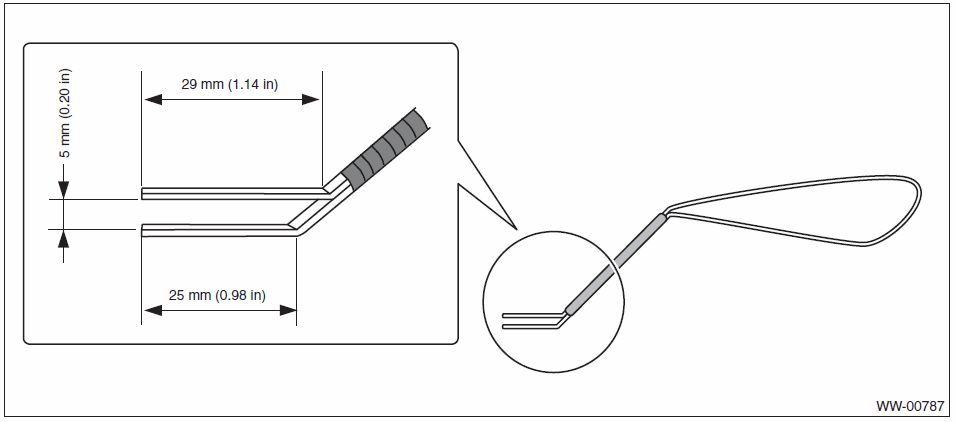

- Check that the tip clearance is 5 mm (0.20 in), and secure the vertebra with vinyl tape (b).
