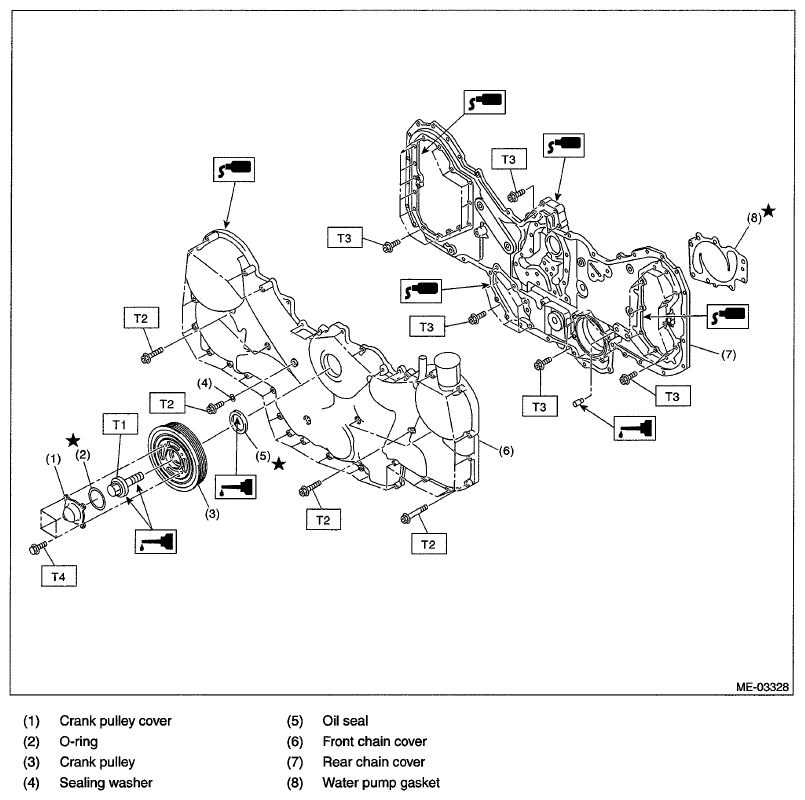

Timing Chain Cover
WARNING: This page is about a different variant/trim than selected.
Tightening torque: N.m (kgf-m, ft-lb)
T1: Refer to CRANK PULLEY .
T2: Refer to FRONT CHAIN COVER .
T3: Refer to REAR CHAIN COVER .
T4: 6.4 (0.7, 4.7)
Tightening torque: N.m (kgf-m, ft-lb)
T1: Refer to CRANK PULLEY .
T2: Refer to FRONT CHAIN COVER .
T3: Refer to REAR CHAIN COVER .
T4: 6.4 (0.7, 4.7)
