Cylinder Block

WARNING: This page is about a different variant/trim than selected.

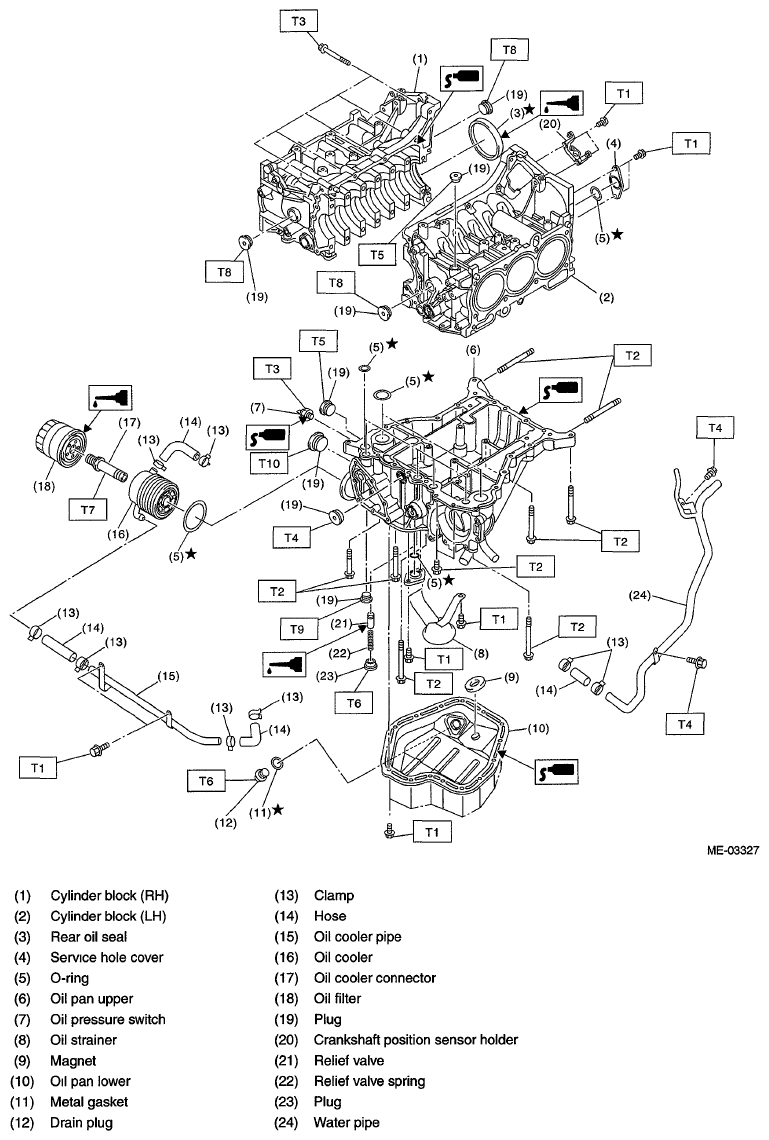

Fig 1: Identifying Cylinder Block Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m(kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 18 (1.8, 13.3)

T3: 25 (2.5, 18.4)

T4: 16 (1.6, 11.8)

T5: 37 (3.8, 27.3)

T6: 44 (4.5, 32.5)

T7: 54 (5.5, 39.8)

T8: 70 (7.1, 51.6)

T9: 23 (2.3, 17.0)

T10: 90 (9.2, 66.4)
