Cylinder Block: Assembly

WARNING: This page is about a different variant/trim than selected.

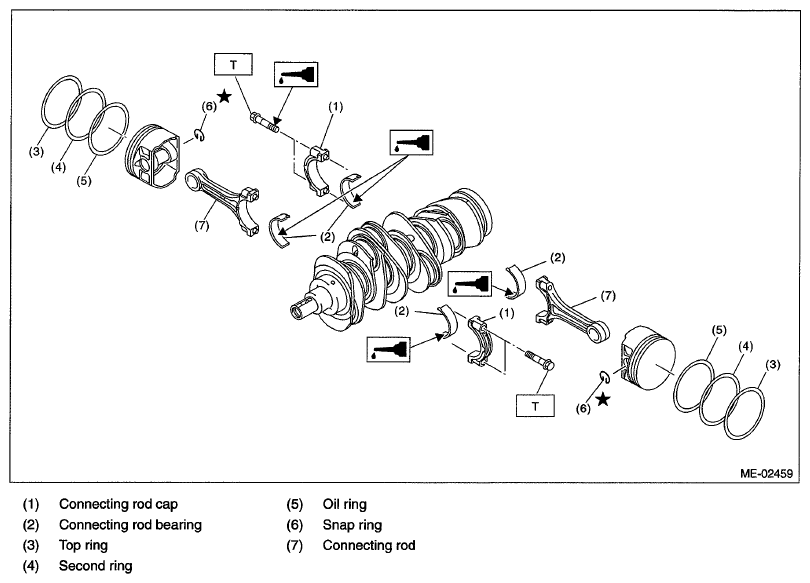

Fig 1: Identifying Connecting Rod Cap, Connecting Rod Bearing, Snap Ring, Top Ring, Oil Ring, Second Ring And Connecting Rod
G06336476Courtesy of SUBARU OF AMERICA, INC.
  1. Apply oil to the surface of the connecting rod bearings, and install the bearings on the connecting rods and connecting rod caps.
  2. Position each connecting rod with the marking side facing forward.
  3. Install the connecting rod cap. Make sure the arrow mark on connecting rod cap facing front during installation.
    CAUTION:
    • Each connecting rod has its own mating cap. Make sure that they are assembled correctly by checking their matching number.
    • When tightening the connecting rod bolts, apply oil on the threads and flange end.

    Tightening torque:

    53 N.m (5.4 kgf-m, 39.1 ft-lb)

  4. Install the oil ring spacer, upper rail and lower rail by hand.
  5. Install the second ring and top ring using piston ring expander.
