Draining Fuel (Through The Fuel Filler Hose)

WARNING: Place "NO OPEN FLAMES" signs near the working area.

CAUTION:

Be careful not to spill fuel.
Fuel may remain in the fuel filler pipe. Draining the fuel from the fuel filler pipe through the fill opening using the gasoline proof pump and the gasoline proof hose (010 or less) before the operation.

Set the vehicle on a lift.
Lift up the vehicle.
Remove the rear exhaust pipe and muffler. Refer to REMOVAL , Rear Exhaust Pipe. Refer to REMOVAL , Muffler.
Open the fuel filler lid, and remove the fuel filler cap.
Drain the fuel from the fuel filler pipe through the fill opening using the gasoline proof pump and the gasoline proof hose (010 or less).
Disconnect the fuel filler hose (A) from the fuel filler pipe.
CAUTION:
- Be careful not to spill fuel.
- Catch the fuel from hoses using a container or cloth.

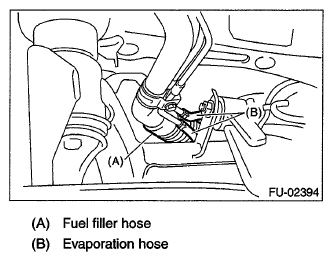

  Fig 1: Identifying Fuel Filler Hose
  Courtesy of SUBARU OF AMERICA, INC.
Set the container under the vehicle and insert the gasoline proof hose (ø 10 or less) into the fuel filler hose to drain the fuel.
CAUTION: Be careful not to spill fuel.
