Automatic Transmission Fluid: Inspection
CAUTION:
The level of ATF varies with fluid temperature. Pay attention to the ATF temperature when checking ATF level.
- Raise the ATF temperature by driving a distance of 5 - 10 km (3 - 6 miles). Otherwise, idle the engine to raise ATF temperature to 70 - 80°C (158 - 176°F) on Subaru Select Monitor. Refer to OPERATION , Read Current Data.
- Make sure the vehicle is level.
- After selecting all positions (P, R, N, D), set the select lever in "P" range. Idle the engine for 1 or 2 minutes, and measure the ATF level.

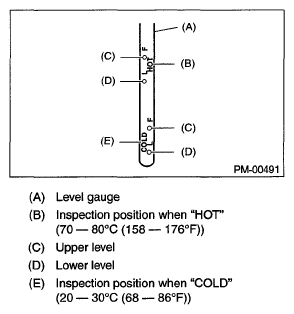

- Make sure that ATF level is between the upper level and lower level on the "HOT" side.
- If the ATF level is below the mid level between upper and lower marks, add the recommended ATF until the fluid level is above mid level.CAUTION:
- Be careful not to exceed the upper level.
- Do not fill up to the upper level on the "HOT" side when the ATF temperature is less than 70°C (158°F) as overfilling can cause problems.
- Check the ATF level after raising ATF temperature to 70 - 80°C (158 - 176°F) by driving the vehicle another 5 - 10 km (3 - 6 miles) or by idling the engine again.
- Check that there are no ATF leaks.
If there are leaks, it is necessary to repair or replace gaskets, oil seals, plugs or other parts.
