Section 23 (Engine Mechanical (H6DO))
>>
General Description
>>
Components With Torque Specifications
>>
Engine Mounting
Engine Mounting
WARNING:
This page is about a different variant/trim than selected.

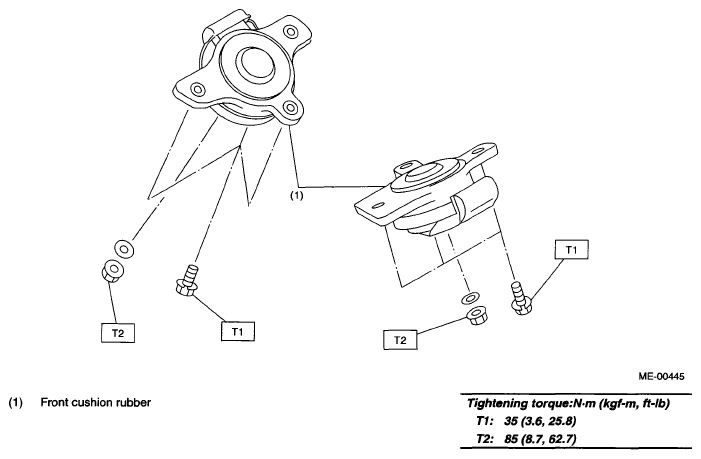

Fig 1: Identifying Engine Mounting Components
Courtesy of SUBARU OF AMERICA, INC.
