Direct Clutch Assembly

Check the clearance of direct clutch.

Measure the clearance "L" between snap ring and retaining plate using thickness gauge. If the measured value is out of specification, replace them as direct clutch assembly.

Standard value:

0.6-0.8 mm (0.024-0.031 in)

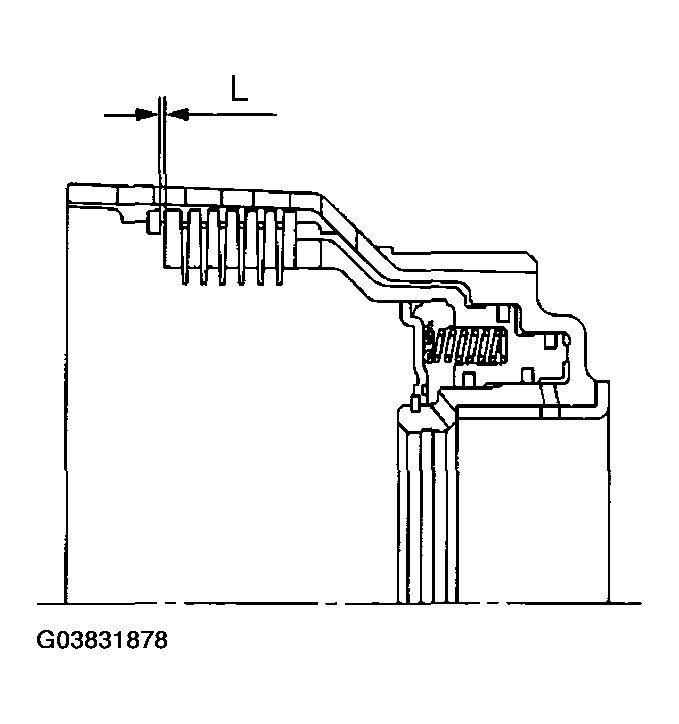

Fig 1: Identifying Clearance Between Snap Ring And Retaining Plate (Direct Clutch Assembly)

Courtesy of SUBARU OF AMERICA, INC.
