Starter Motor Circuit

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode < Ref. to , CLEAR MEMORY MODE , Clear Memory Mode.> and Inspection Mode < Ref. to , INSPECTION MODE , Inspection Mode.>.

WIRING DIAGRAM:

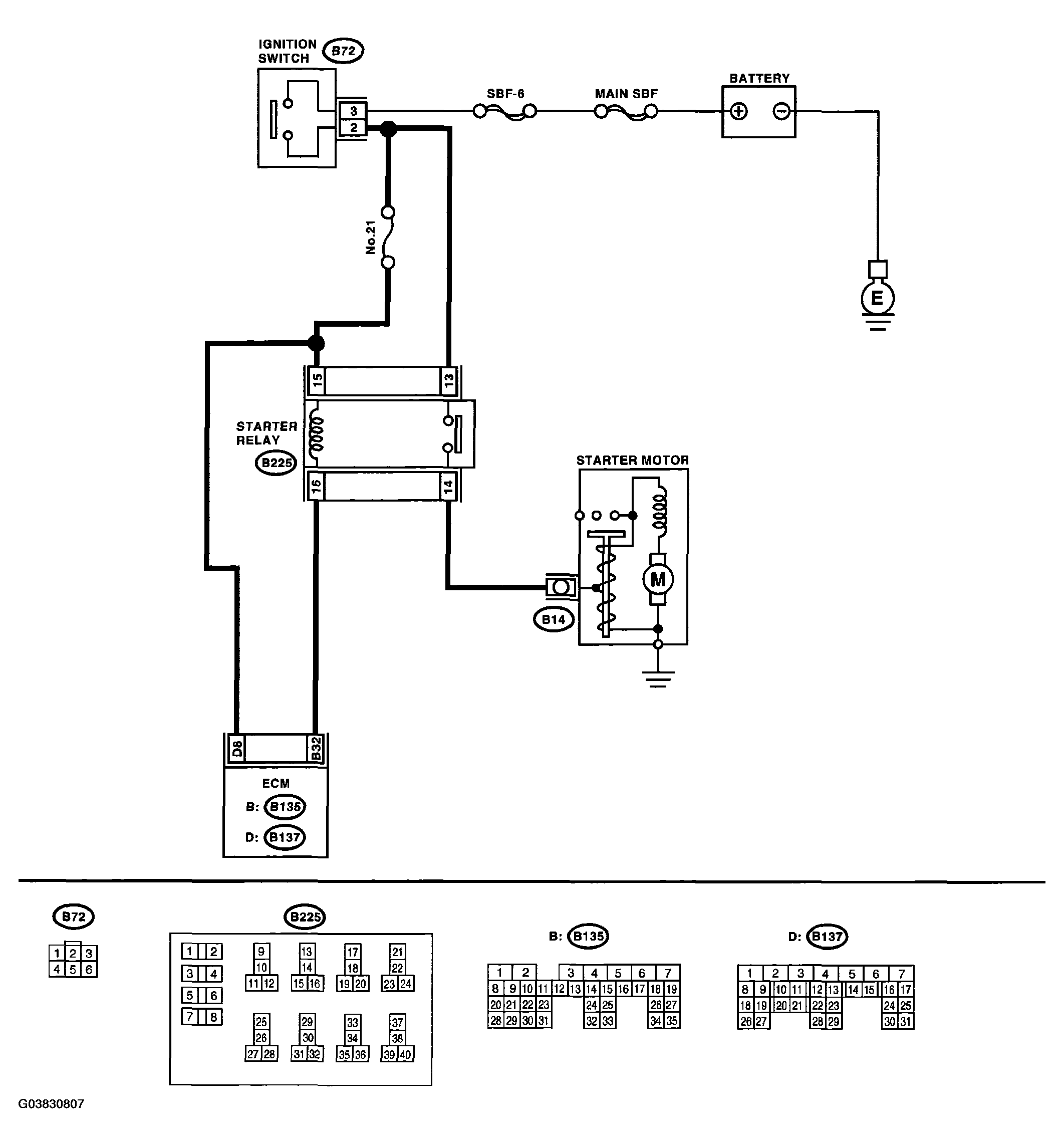

Fig 1: Identifying Starter Motor Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSIS PROCEDURE - STARTER MOTOR CIRCUIT

Step	Check	Yes	No
1 CHECK BATTERY. Check the battery voltage.	Is the voltage more than 12 V?	Go to step 2.	Charge or replace the battery.
2 CHECK OPERATION OF STARTER MOTOR.	Does the starter motor operate?	Go to step 3.	Go to step 4 .
3 CHECK DTC.	Is DTC displayed? < Ref. to , OPERATION , Read Diagnostic Trouble Code (DTC). >	Inspect the relevant DTC using List of Diagnostic Trouble Code (DTC). < Ref. to , LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . >	Repair the poor contact in ECM connector.
4 CHECK INPUT SIGNAL FOR STARTER MOTOR. Turn the ignition switch to OFF. Disconnect the connector from starter motor. Turn the ignition switch to START. Measure the power supply voltage between starter motor connector terminal and engine ground. Connector & terminal (B14) No. 1 (+) - Engine ground (-): NOTE: Shift the select lever to "P" or "N" range.	Is the voltage more than 10 V?	Check the starter motor. < Ref. to STARTER . >	Go to step 5.
5 CHECK HARNESS BETWEEN BATTERY AND IGNITION SWITCH CONNECTOR. Disconnect the connector from ignition switch. Measure the power supply voltage between ignition switch connector and chassis ground. Connector & terminal (B72) No. 3 (+) - Chassis ground (-):	Is the voltage more than 10 V?	Go to step 6.	Repair the open circuit in harness between ignition switch and battery, and check fuse SBF No. 7 and SBF No. 1.
6 CHECK IGNITION SWITCH. Disconnect the connector from ignition switch. Measure the resistance between ignition switch terminals while turning the ignition switch to START position. Terminals No. 2 - No. 3:	Is the resistance less than 5 ?	Go to step 7.	Replace the ignition switch.
7 CHECK INPUT VOLTAGE OF STARTER RELAY. Turn the ignition switch to OFF. Disconnect the connector from starter relay. Connect the connector to ignition switch. Measure the input voltage between starter relay connector and chassis ground while turning the ignition switch to START position. Connector & terminal (B225) No. 13 (+) - Chassis ground (-): (B225) No. 15 (+) - Chassis ground (-):	Is the voltage more than 10 V?	Go to step 8.	Repair the open circuit in harness between starter relay and ignition switch.
8 CHECK STARTER RELAY. Connect the battery to starter relay terminals No. 15 and No. 16. Measure the resistance between starter relay terminals. Terminals No. 13 - No. 14:	Is the resistance less than 1 ?	Go to step 9.	Replace the starter relay.
9 CHECK INPUT VOLTAGE FROM ECM. Turn the ignition switch to OFF. Connect the connector to starter relay. Disconnect the connectors from ECM. Measure the voltage between ECM and chassis ground. Connector & terminal (B135) No. 32 (+) - Chassis ground (-): (B137) No. 8 (+) - Chassis ground (-):	Is the voltage more than 10 V?	Replace the ECM. < Ref. to ENGINE CONTROL MODULE (ECM) . >	Repair the open or ground short circuit in harness between ECM and starter relay.
