Control Module I/O Signal: Wiring Diagram

WARNING: This page is about a different car, the 2005 Subaru Outback and 2005 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

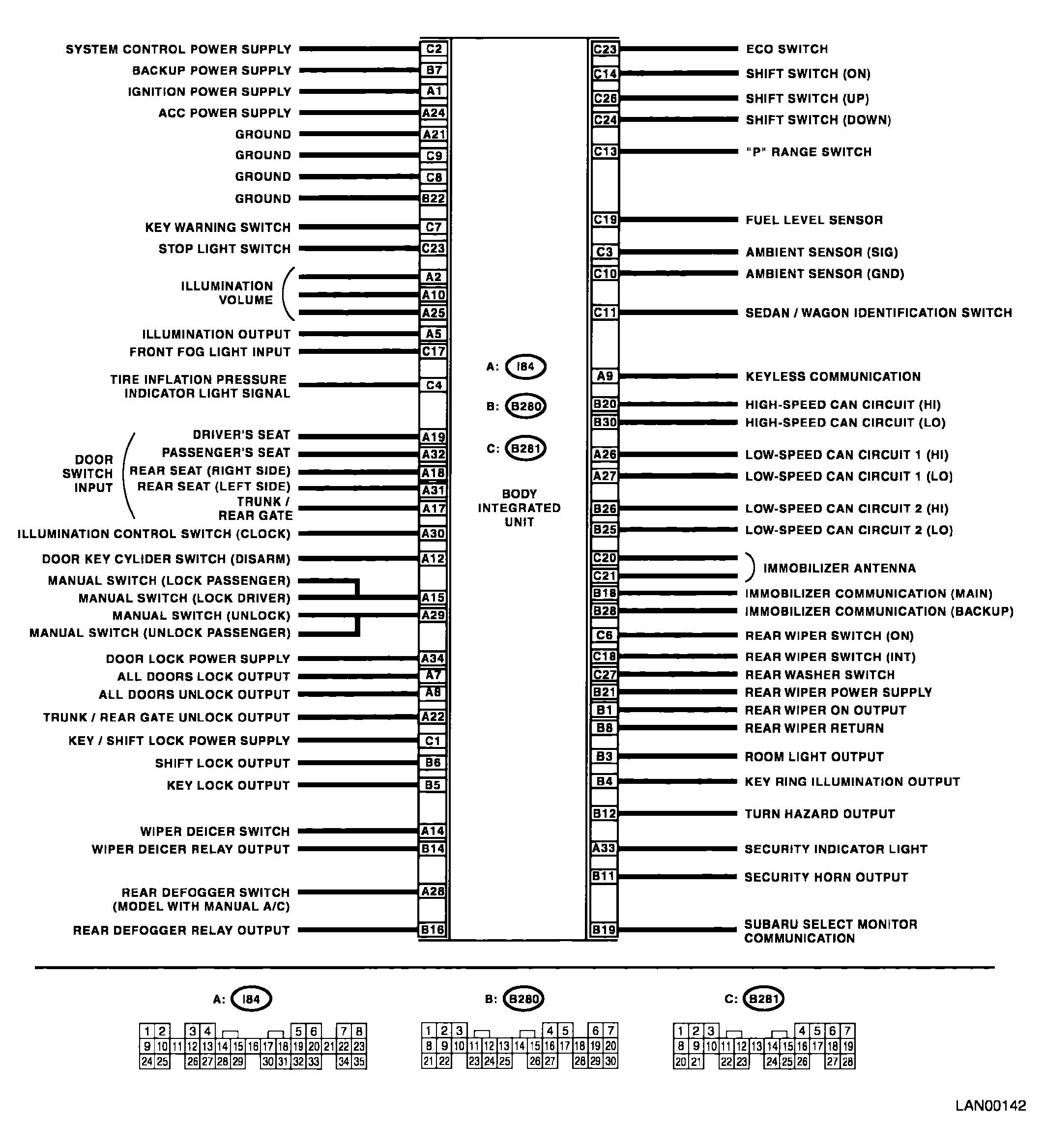

Fig 1: Control Module Wiring Diagram
G04587407Courtesy of SUBARU OF AMERICA, INC.
