Clutch - Mechanism & Function
>>
Cross Sectional View
>>
Turbo Models
Turbo Models

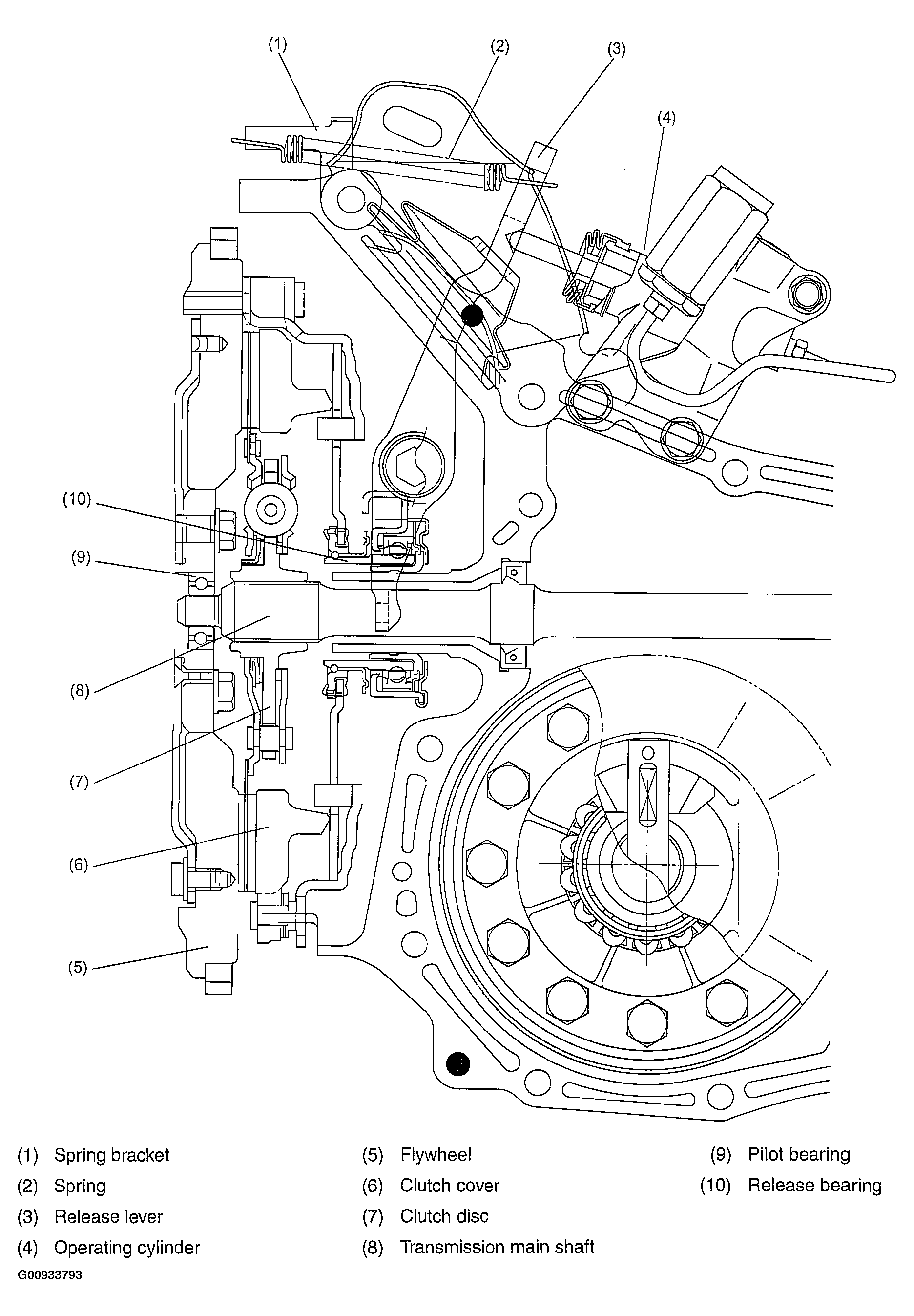

Fig 1: Identifying Clutch Cross Sectional View Components - Turbo Models
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
