Automatic Transmission - Mechanism & Function
>>
On-board Diagnostics System
>>
Diagnostic Trouble Codes
>>
Non-Turbo Models
Non-Turbo Models

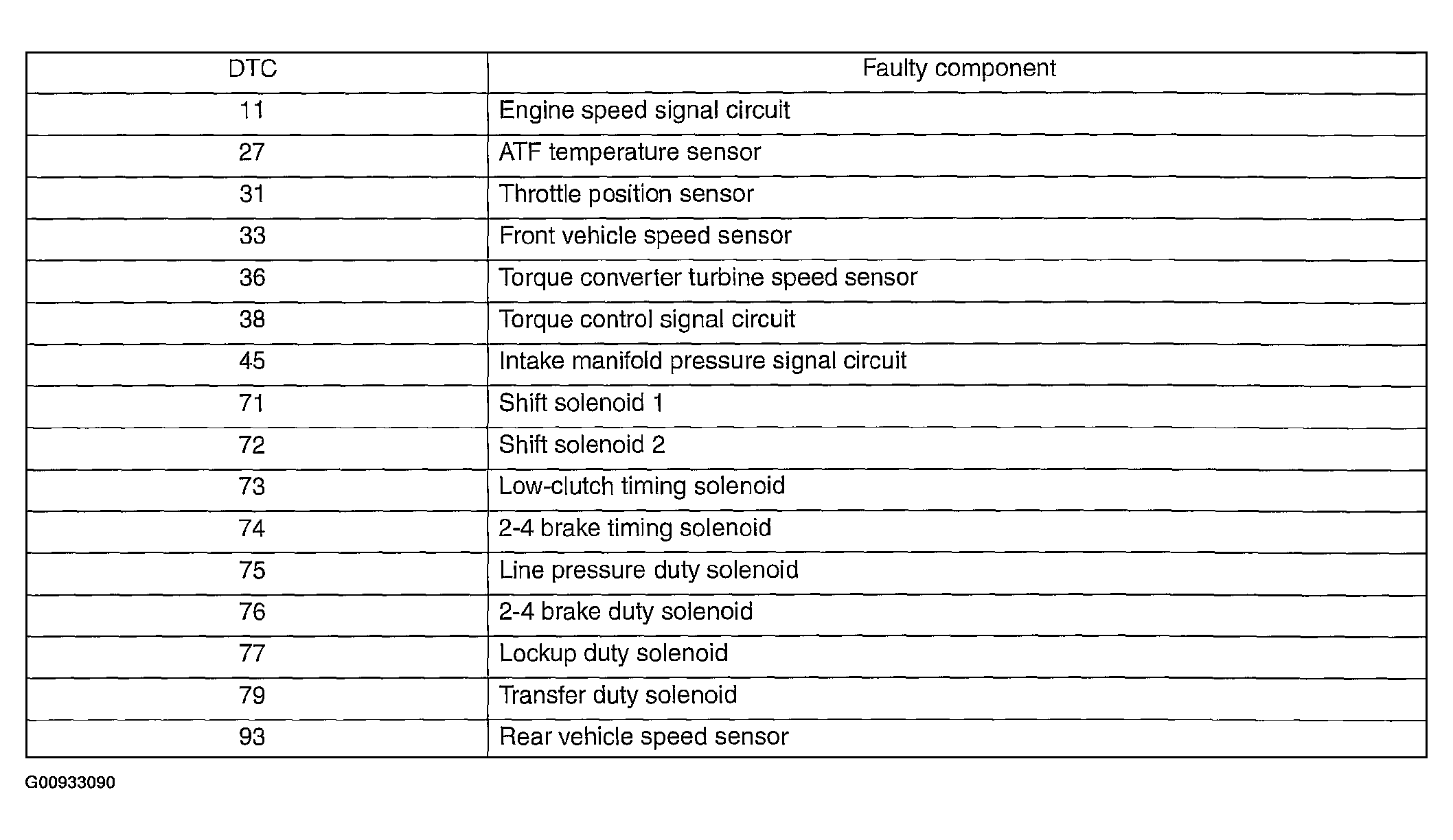

Fig 1: Diagnostic Trouble Codes Chart - Non-Turbo Models
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
