Tumble Generator Valve Actuator: Removal

RH SIDE
1. Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE . >
2. Open the fuel filler flap lid and remove the fuel filler cap.
3. Disconnect the ground cable from battery.

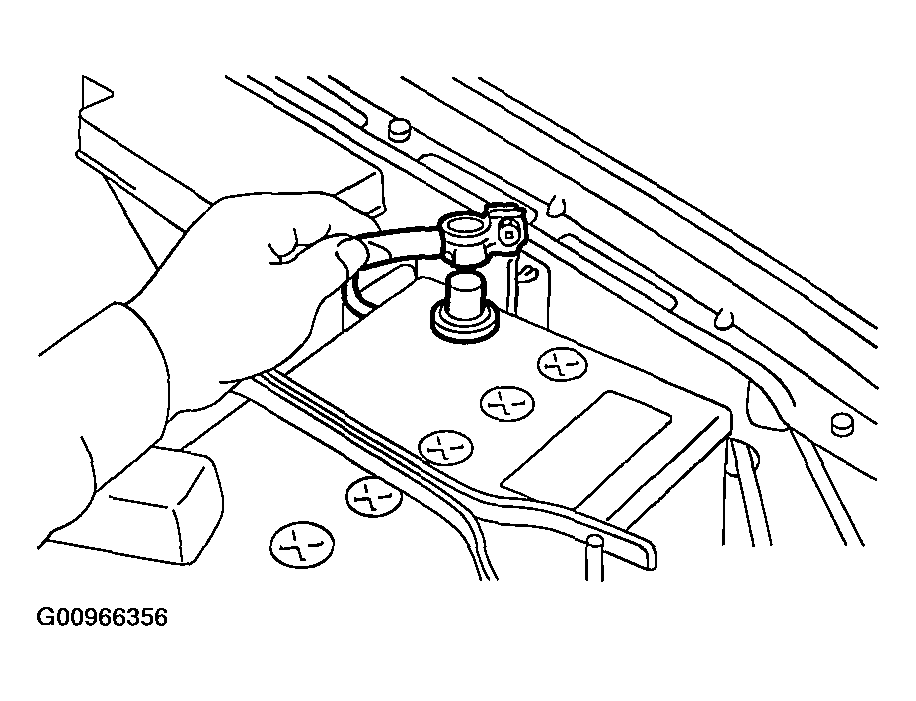

  Fig 1: Disconnecting Ground Cable From Battery
  Courtesy of SUBARU OF AMERICA, INC.
4. Remove the intake manifold. < Ref. to REMOVAL . >
5. Disconnect the connector from tumble generator valve actuator RH.
6. Remove the tumble generator valve actuator RH.

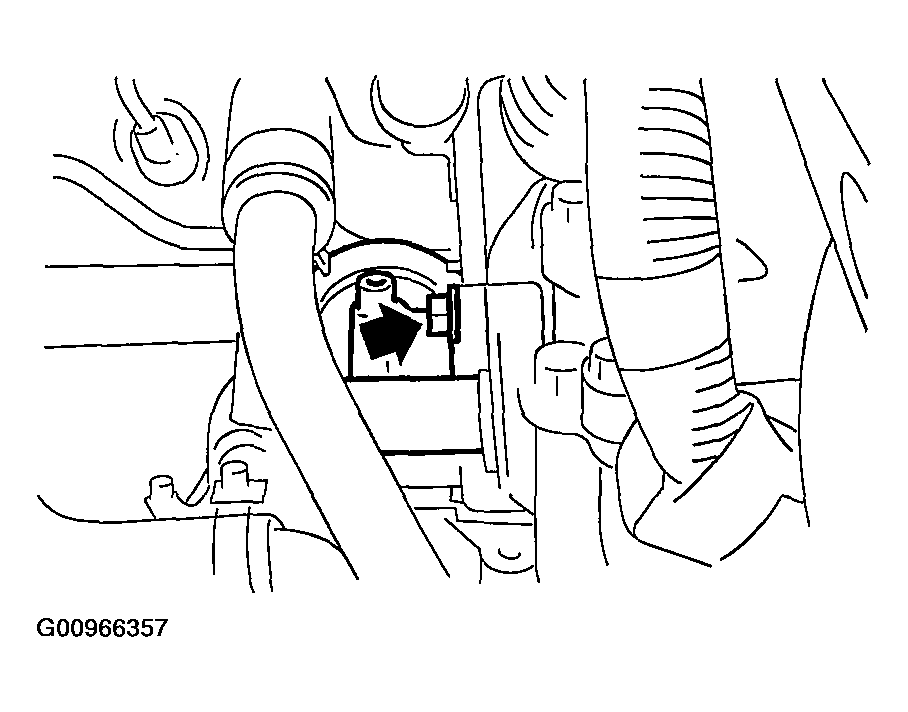

  Fig 2: Identifying Tumble Generator Valve Actuator RH
  Courtesy of SUBARU OF AMERICA, INC.
LH SIDE
1. Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE . >
2. Open the fuel filler flap lid and remove the fuel filler cap.
3. Disconnect the ground cable from battery.

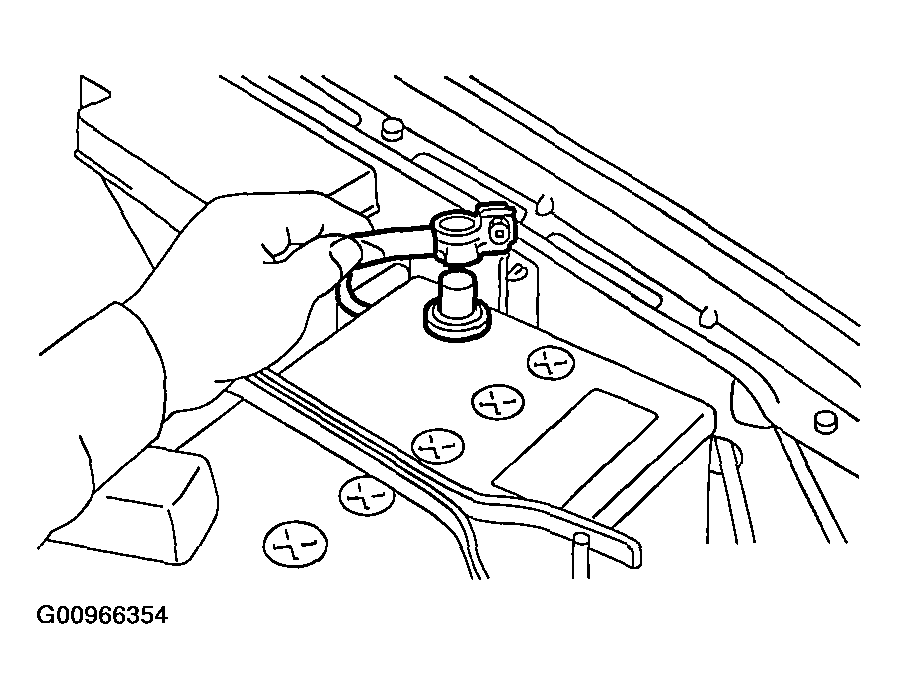

  Fig 3: Disconnecting Ground Cable From Battery
  Courtesy of SUBARU OF AMERICA, INC.
4. Disconnect the connector from tumble generator valve actuator LH.
5. Remove the tumble generator valve actuator LH.

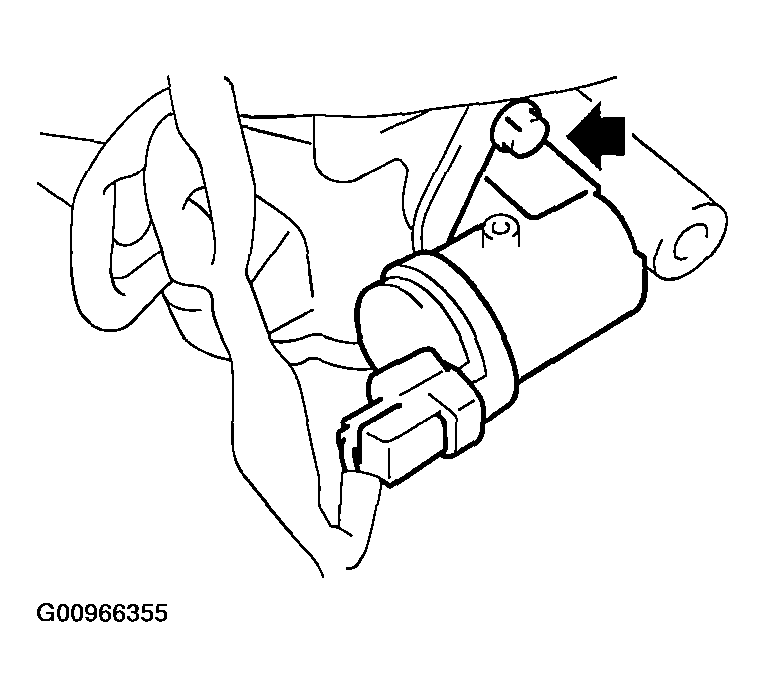

  Fig 4: Identifying Tumble Generator Valve Actuator LH
  Courtesy of SUBARU OF AMERICA, INC.
