Fuel Cut Valve: Removal

  1. Remove fuel tank. Refer to FUEL TANK .
  2. Move clip and disconnect evaporation hose from fuel cut valve.

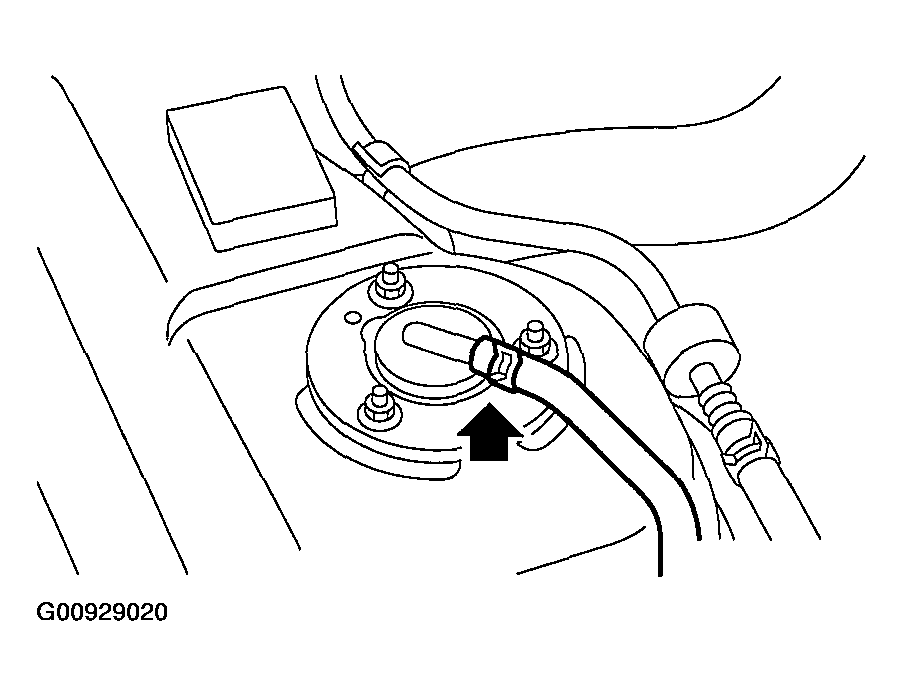

    Fig 1: Removing Fuel Tank
    G00929020Courtesy of SUBARU OF AMERICA, INC.
  3. Remove bolts which install fuel cut valve.
