Turbo Models

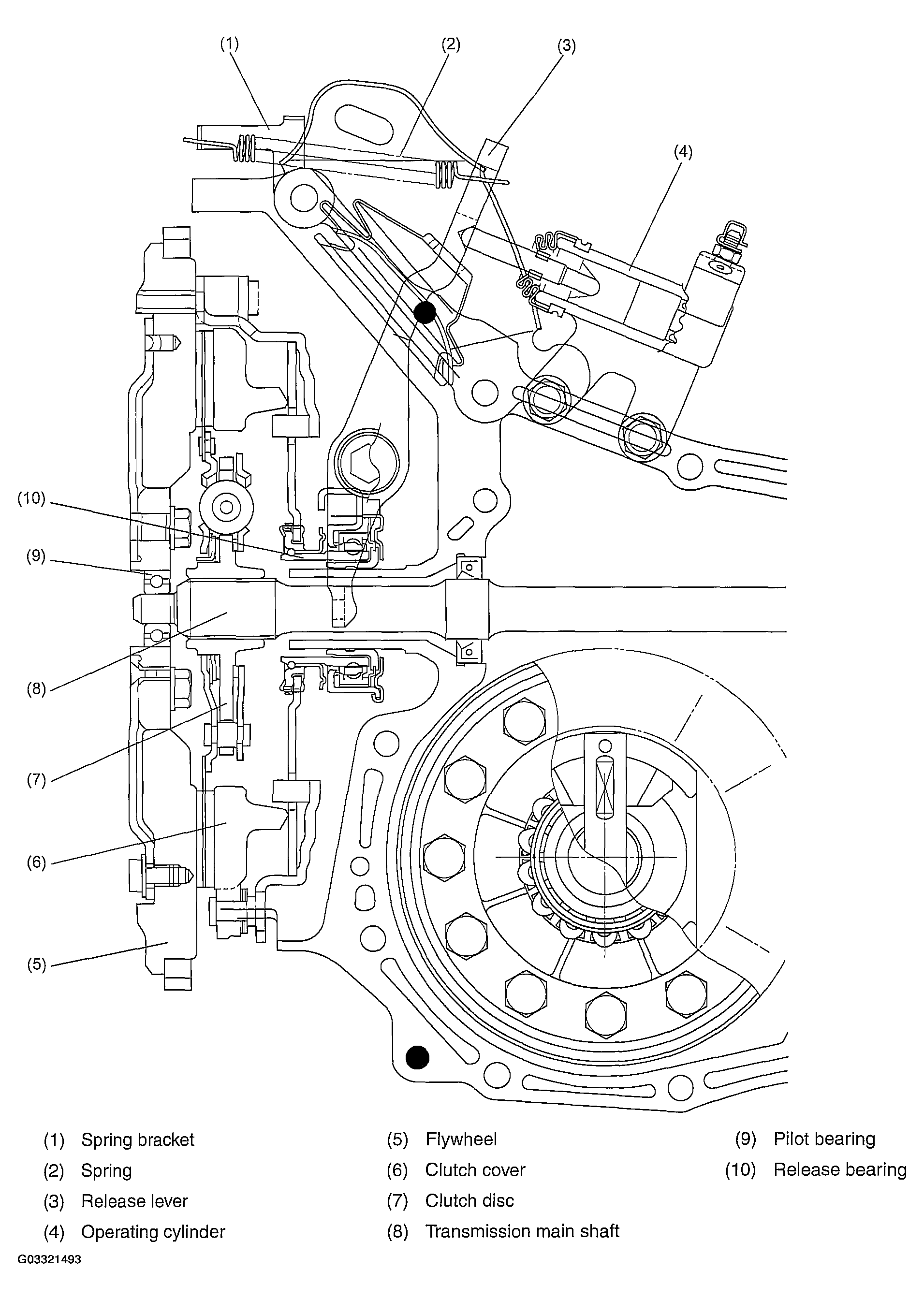

Fig 1: Identifying Cross Sectional View (Turbo Models)

G03321493

Courtesy of SUBARU OF AMERICA, INC.
